Drive System Europe 001105 Linear Actuator Stroke 100mm Thrust 1000N

Drive System Europe by MSW
Standard range
Order Code:

11-6884

Brand: Drive System Europe by MSW MPN: 001105 EAN-13: 4016138654653
Qty Unit Price (Ex VAT)
1+ £152.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

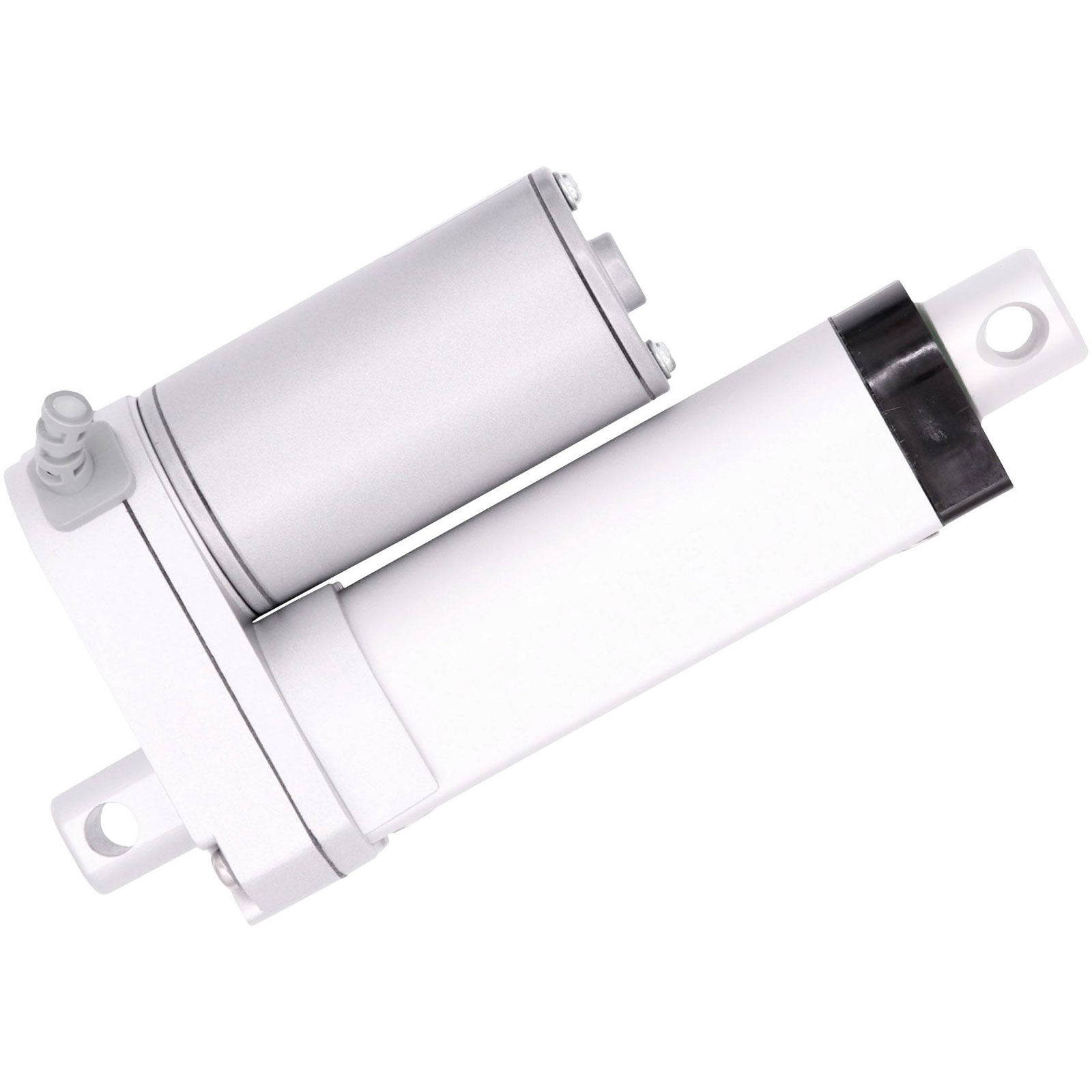

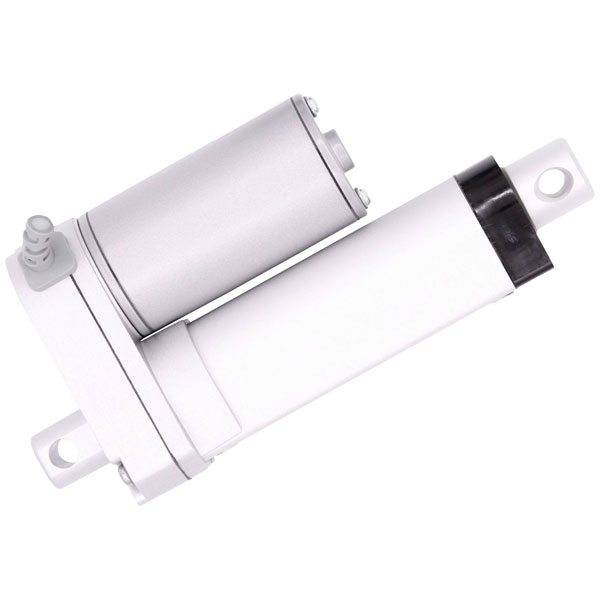

Drive System Europe by MSW manufactures the linear actuator DSZY1-12-40-100-STD-IP65, featuring a stroke length of 100 mm and thrust of 1000 N with a 12 V DC power supply. This actuator, designed with a zinc alloy housing, offers a static holding force up to 2300 Nm and is suited for automation and drive technology applications. It's ideal for use in environments requiring precise linear motion and robust performance.
Type Linear actuator
Current consumption 3A
Manufacturer part # 001105
Misc Attribute DSZY1-12-40-100-STD-IP65
Nominal current (details) 3.2A
Nominal voltage 12V DC
Nominal voltage (details) 12V DC
Speed (max.) 8 mm/s
Stroke length 100mm
Thrust 1000N
