Drive System Europe 001102 Linear Actuator 100mm Stroke 250N Thrust 12V DC

Drive System Europe by MSW
Standard range
Order Code:

11-6882

Brand: Drive System Europe by MSW MPN: 001102 EAN-13: 4016138654561
Qty Unit Price (Ex VAT)
1+ £152.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

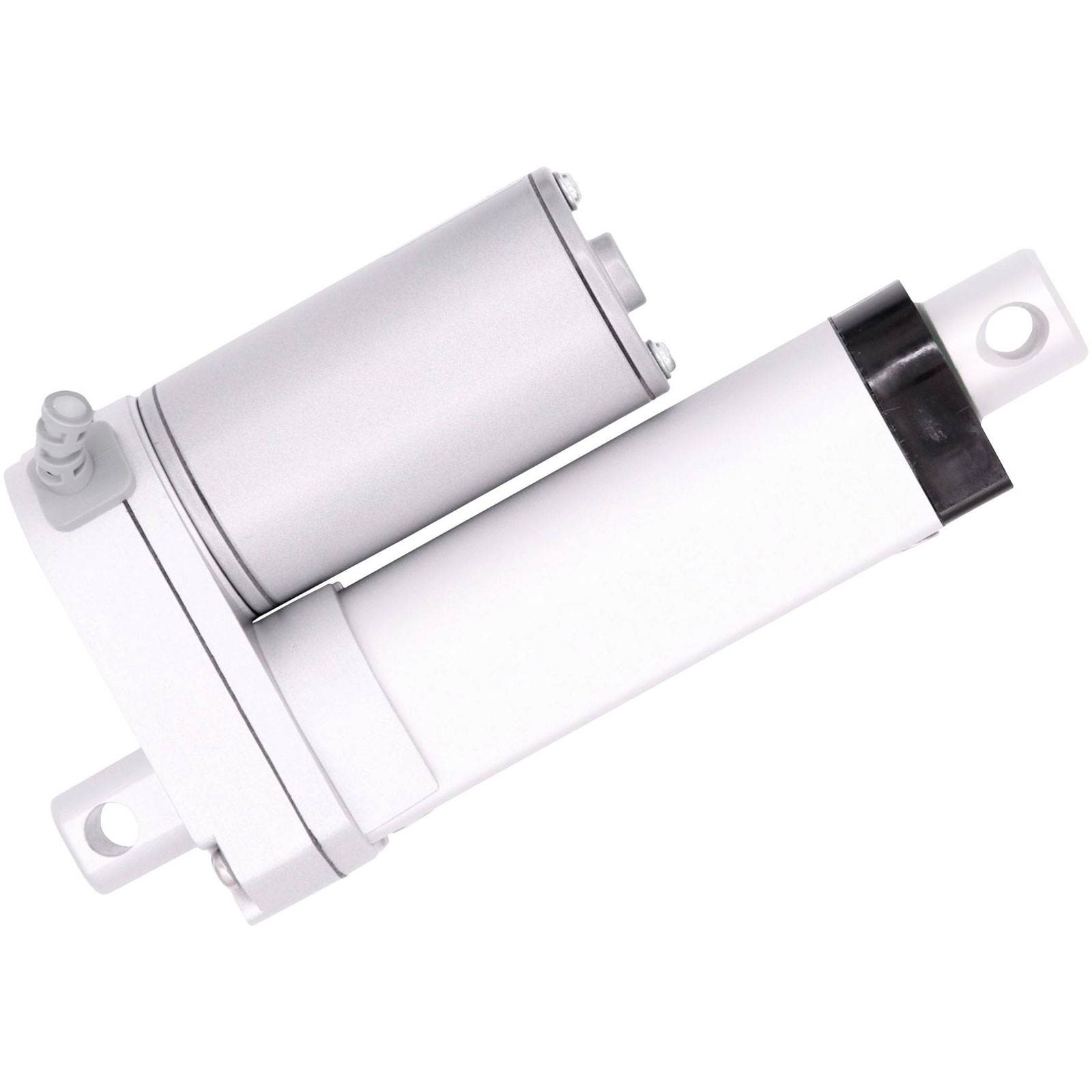

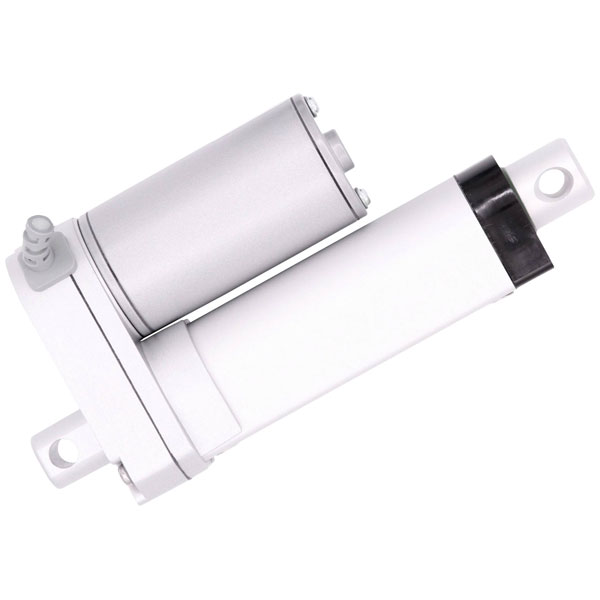

The Drive System Europe by MSW linear actuator DSZY1-12-10-100-STD-IP65 features a stroke length of 100 mm and a thrust of 250 N, powered by 12 V DC. Its static holding force can reach up to 2300 Nm, and it is constructed with a zinc alloy housing for durability and protection, rated at IP65 for dust and water resistance. This actuator is typically used in automation and drive technology applications where precise and reliable linear motion is
Type Linear actuator
Current consumption 3A
Manufacturer part # 001102
Misc Attribute DSZY1-12-10-100-STD-IP65
Nominal current (details) 3.2A
Nominal voltage 12V DC
Nominal voltage (details) 12V DC
Speed (max.) 29 mm/s
Stroke length 100mm
Thrust 250N
