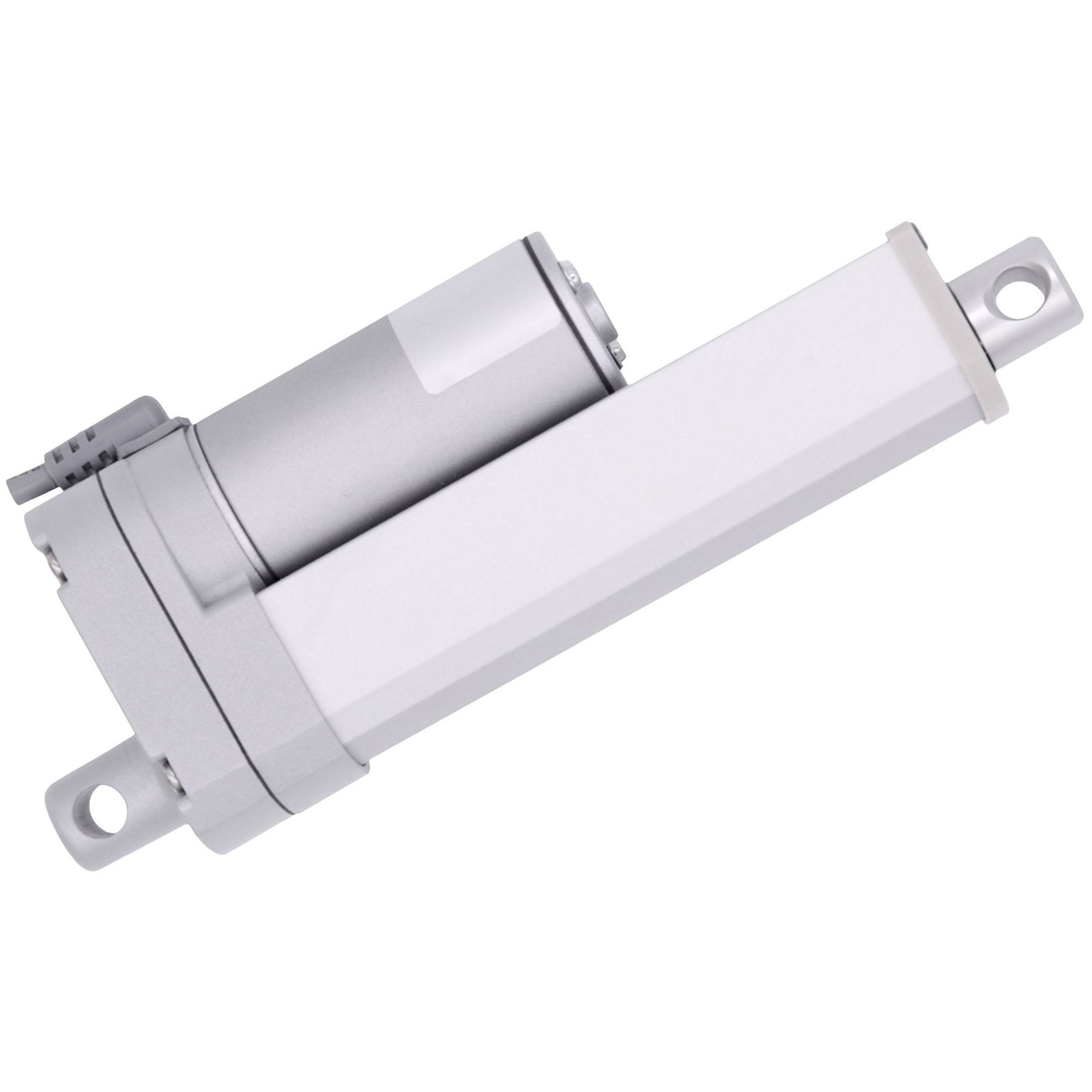

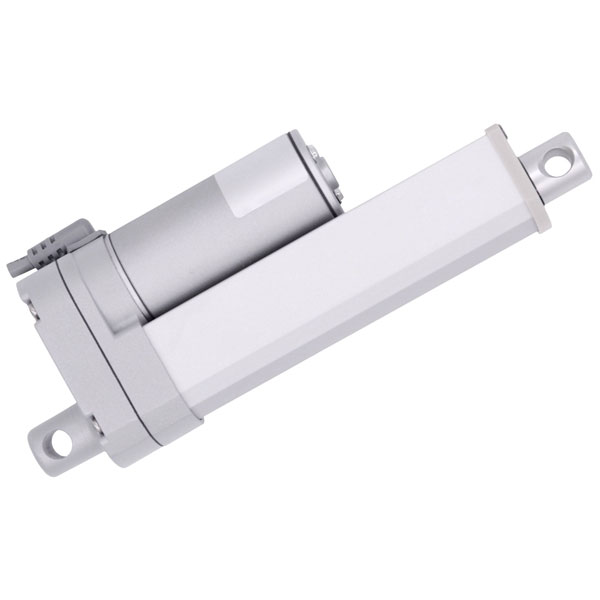

Drive System Europe 00070065 Linear Actuator 200mm Stroke 2500N Thrust

Drive System Europe by MSW manufactures the DSZY4-24-50-200-STD-IP65 linear actuator, featuring a stroke length of 200 mm and capable of producing a thrust of 2500 N. It operates on 24 V DC and is suitable for applications requiring precise linear motion and high force, such as in industrial automation or mechanical engineering. With its robust design and IP65 protection, it is ideal for use in environments that require protection against dust and water ingress.

Type	Linear actuator
Stroke Length	200mm
Thrust	2500N
Nominal Current	2.1A
Nominal Voltage	24V DC
IP Rating	IP65
Max. ambient temperature	+65°C
Maximum Temperature	+65°C
Min. ambient temperature	-20°C
Min. temperature	-20°C
Misc Attribute	DSZY4-24-50-200-STD-IP65
Nominal current - rounded value	2.1A
Speed (max.)	6 mm/s
