Drive System Europe 00070040 DSZY 4 Linear Actuator 100mm Stroke 2500N 12V DC

Drive System Europe by MSW
Standard range
Order Code:

11-6868

Brand: Drive System Europe by MSW MPN: 00070040 EAN-13: 4016139002941
Qty Unit Price (Ex VAT)
1+ £313.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

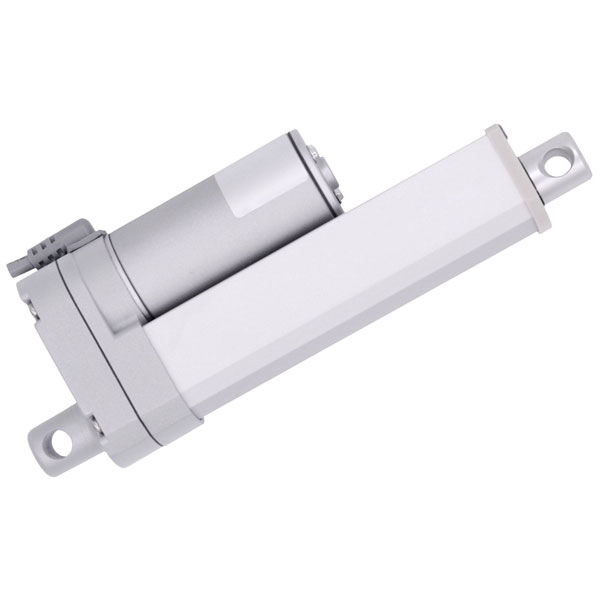

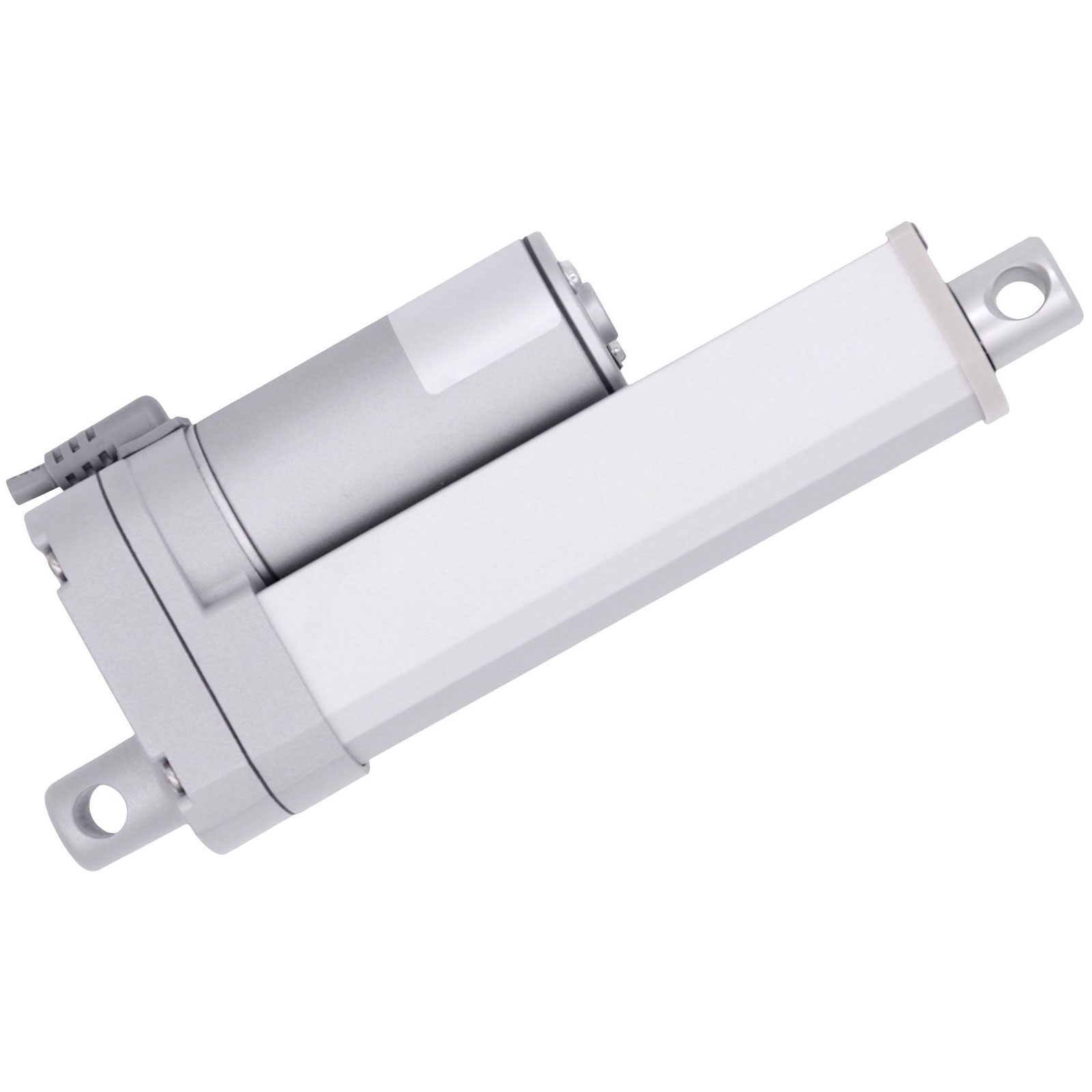

Drive System Europe by MSW offers the DSZY4-12-50-100-STD-IP65 linear actuator, featuring a stroke length of 100 mm and a thrust of 2500 N, powered by 12 V DC. It is ideal for applications requiring precise linear motion, such as in automation systems and adjustable machinery. The actuator is robust with an IP65 rating, ensuring protection against dust and water ingress.
Type Linear actuator
IP rating IP65
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -20°C
Min. temperature -20°C
Misc Attribute DSZY4-12-50-100-STD-IP65
Nominal current 4.2A
Nominal current - rounded value 4.2A
Nominal voltage 12V DC
Speed (max.) 6 mm/s
Stroke length 100mm
Thrust 2500N
