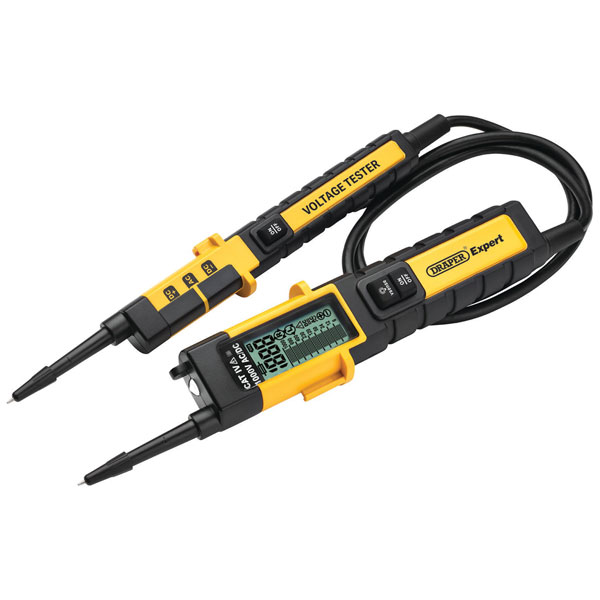

Draper Expert 21250 AC/DC High Voltage CAT IV Tester, 1000V

This high-voltage circuit tester is designed to check automotive circuitry, domestic wiring, and electronic equipment.

It is specifically designed for testing 6V-1,000V DC systems and 24V-1,000V AC systems.

The tester features an easy-to-read LCD digital display, including a bar chart displaying voltage ranges of 6, 12, 24, 50, 120, 230, 400, 690, and 1,000V.

Additionally, it includes a self-test function, a light for illuminating the test point, and an insulated and sharpened probe for accessing circuits and switches with adjustable covers.

This tester is suitable for use with most hybrid and electric cars, motorcycles, commercial vehicles, trailers, boats, and agricultural vehicles.

Requires 2 x AAA batteries (available separately).

• CAT category: CAT IV 1,000V
• AC voltage range: 24-1,000V
• DC voltage range: 6-1,000V
• Voltage increments: 1V
• Accuracy: ±3% and ±3V
• Ingress protection: IP65
• Weight: 0.285kg

Maximum Voltage	1000V
Display Type	Digital (LCD)
Insulation Test Voltage	CAT IV
IP Rating	IP65
