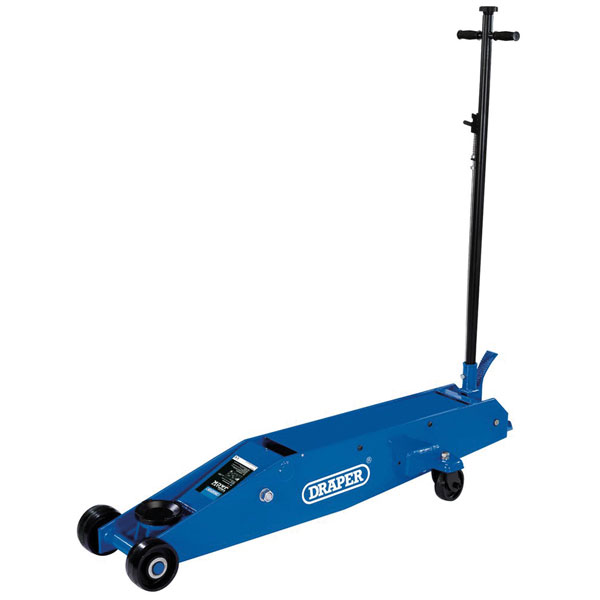

Draper 03494 Long Chassis Trolley Jack (10 tonne)

Draper
Order Code:

91-9685

Brand: Draper MPN: 03494 EAN-13: 5010559034949
Qty Was Unit Price (Ex VAT)
1+ £616.15 £570.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Out of stockBack-order availability date - 22/05/2026


Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.

  • Capacity 10 Tonne (10,000kg)
  • Minimum Height 170mm
  • Maximum Height 570mm
  • Saddle Diameter 130mm
  • Handle Length 1,220mm
  • Chassis Length 1,535mm
  • Nett Weight 125kg
Type Trolley Jack
Load Capacity 10 Tonne
Capacity 10 Tonne
Handle Length 1,220mm
