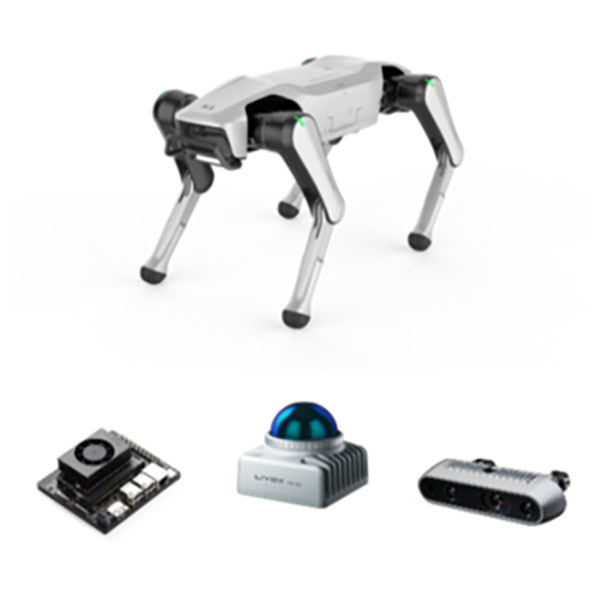

The Dobot Explorer Sentinel (Flagship Education Edition) Quadruped Robot is a high-performance mobile robotics platform, designed for advanced robotics education, autonomous navigation and AI system development. Its point-legged quadruped design provides stable mobility across varied terrain, supporting speeds up to 1.8m/s, climbing inclines of 30–35° and overcoming obstacles up to 16cm. With a payload capacity of 3kg to 7kg, it is suited to complex research and development scenarios requiring multi-sensor integration and processing.
The platform integrates advanced sensing and AI capability for high-precision perception and navigation. It features dual front and rear 1080p RGB cameras with depth sensing, an Intel RealSense D435i depth camera and a Livox Mid360 LiDAR system, enabling detailed environmental mapping and spatial awareness. These systems support SLAM, intelligent obstacle avoidance and active following, with voice interaction and app-based control providing flexible user operation. Connectivity is supported via Wi-Fi 6, Bluetooth 5.2 and 4G for reliable communication and data transfer in a range of environments.
Designed for advanced development, the Explorer Sentinel incorporates a 40 TOPS computing platform to handle AI workloads, alongside both camera and LiDAR software packages for perception-based applications. It includes an Isaac Gym simulation environment and supports C++ and Python SDKs, offering access to low-level control such as joint torque and gait parameters, as well as high-level functions including motion speed control and state management. The platform also supports future expansion with motion and navigation application examples.
- Quadruped point-legged design for stable mobility
- Up to 1.8m/s movement speed
- 30 to 35° climbing capability and 16cm obstacle clearance
- 3 to 7kg payload capacity
- Dual front and rear 1080p RGB cameras with depth sensing
- Intel RealSense D435i depth camera
- Livox Mid360 LiDAR for advanced spatial mapping
- AI functions including SLAM, obstacle avoidance and active following
- 40 TOPS onboard computing platform
- Wi-Fi 6, Bluetooth 5.2 and 4G connectivity
- Voice interaction and app-based control support
- Isaac Gym simulation environment included
- C++ and Python SDK with low-level and high-level control APIs
- Camera and LiDAR software packages provided
- Future support for motion and navigation application examples
- 8000mAh battery with up to 2.5h runtime
| Type |
Quadruped |
| Manufacturers Warranty |
1 Year |
| Control Mode |
Remote Control and Autonomy |
| Max speed |
1.8m/s |
| Operating Temperature |
-10 to 40°C |
| Payload (Continuous) |
3kg |
| Payload (Maximum) |
7kg |
| Running Time |
2.5 hours |
| Weight |
18kg |
