Digitus DN-93831 Fasteners Insert

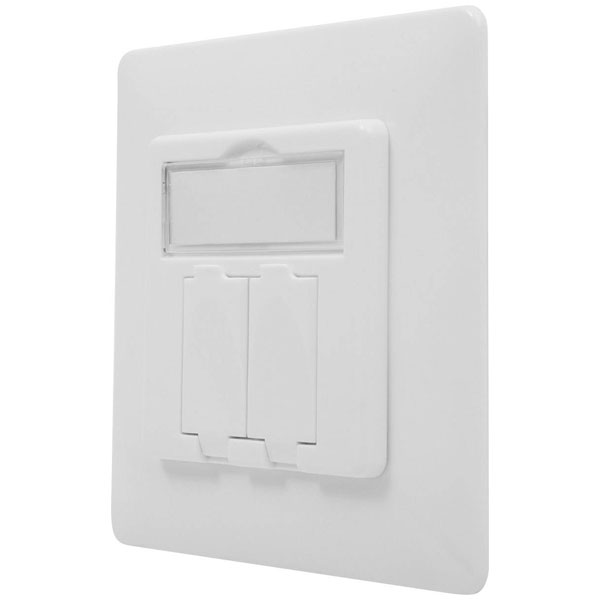

The DIGITUS® Face plate is suitable for the connection of the DIGITUS® Keystone Module "DN-93617". Included dust protection shutters provide a perfect protection. The connection way of the module is 45° vertical. The face okate is fully design compatible to common swith programmes (GIRA, JUNG, etc.). · Layout keystone entry: 45° outlet · Area of application: Cavity socket, trunking, surface mount box · Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C · General properties: · Suitable for installation in trunking, flush and surface mount · Central ground connection · Integrated dust cover · Plastic label field · Design compatible to current switch ranges of switch manufacturers · Technical properties: · Wall outlet material: Die-cast metal · Central plate material: ABS UL 94V-0 · Frame material: ABS UL 94V-0 · Surface mount box material: ABS UL 94V-0 · Physical properties: · Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

Type	Fasteners
Colour	White
