Digilent 410-376 Cmod S7: Breadboardable Spartan-7 FPGA Module

MPN
410-376
Brand
Digilent
Order Code
67-0007
Country of Origin
Taiwan

Discontinued

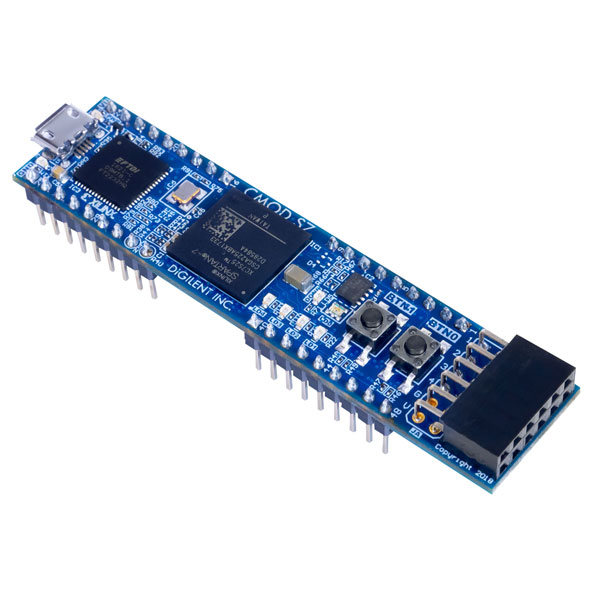

This Digilent Cmod S7 FPGA development board is based around the Xilinx Spartan-7 FPGA.

At just 0.7” by 3.05”, this 48-pin DIP form factor board is small enough to mounted in a standard 48-pin socket, making it ideal for embedded systems. There are 32 FPGA I/O signals , 2 FPGA analog input signals, an external power input rail, and ground that are all routed to 100-mil-spaced through-hole pins, making the Cmod S7 well-suited for use with solderless breadboards.

The board also includes a programming ROM, clock source, USB programming and data transfer circuit, power supplies, LEDs, and buttons.
  • Ideal for use with solderless breadboards
  • Small 0.7” by 3.05”, 48-pin DIP form factor board
  • Can be loaded in a standard socket
  • Perfect for use in embedded systems

To get up and running and for further resources please visit the Digilent Resource Center here.
Type FPGA Development board
