Connfly DS1023-2*8SF11 SIL Socket 2 Rows 8 Pins Per Row

Connfly
Standard range
Order Code:

08-8031

Brand: Connfly MPN: DS1023-2*8SF11 EAN-13: 2050009086473
Qty Unit Price (Ex VAT)
1+ £0.143
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
117 in stock, despatched in 4 working days

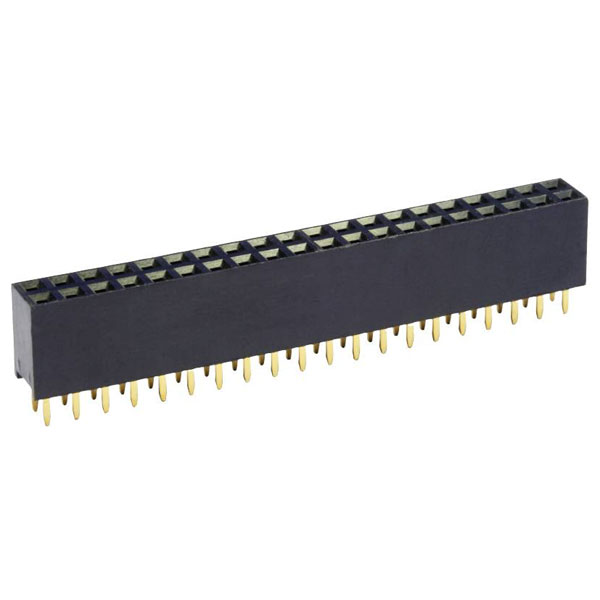

The Connfly DS1023-2*8SF11 SIL socket features two rows of eight pins each, designed for secure and reliable connections. As a standard SIL socket, it is typically used in electronic devices where a compact and straightforward connector solution is needed. This product is supplied as a single piece and comes in a tube packaging.
Type SIL socket (standard)
Case material PBT
Connection Solder pins
Connector orientation Perpendicular (to the PCB)
Connector type Power strip, straight
Contact material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (W x H) 5 mm x 8.5 mm
Factory colour Black
Height 8.5mm
Manufacturer part # DS1023-2*8SF11
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute DS1023-2*8SF11
No. of rows 2
Nominal current 1A
Nominal current - rounded value 1A
Packaging type Tube
Pin length (PCB) 3mm
Pin shape Rectangular
Pins per row 8
Separable No
Total number of pins 16
Width 5mm
