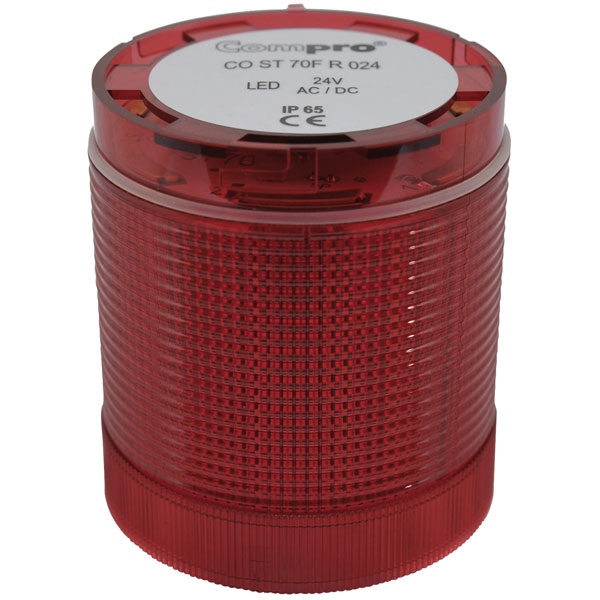

ComPro LED Element for Signal Towers, CO ST70 Series

Compro Brand: Compro

A wide range of ComPro Signal Tower Elements from the CO ST70 Series. These Elements are for the new generation of the signalling columns. They have been specially developed for applications in the industry and serve to make optical attention to an operating state. The signal column elements are available with 2 or 4 functions.

The signal towers are setup via the DIP switch. This allows either the 4 functions for continuous light, flash, double flash and rotating beacon, or alternatively the 2 functions for continuous light and flashing light. These signal tower elements are available in red, green, amber, blue and clear.

Applications: Fire, Security, Industrial, Railway, Marine and Optical.

  • Flexible capabilities
  • Several combination possibilities
  • Impact-proof case
  • Sounder version available
  • Easy assembly
  • Element: 70(W)mm
  • Available with 2 or 4 functions
  • Available for CO ST 70 and CO ST 70 6F Series
  • Available in Red, Green, Amber, Blue and Clear
Description Image Product Buy Pricing (Ex VAT) Colours Type Current Voltage
ComPro CO ST 70 RL 024 LED Element Red 2 Functions
ComPro CO ST 70 RL 024 LED Element Red 2 Functions
Standard range
Order code: 64-2727
MPN: CO ST 70 RL 024

6 in stock, despatched in 4 working days
1+ £43.01
Price per unit Ex VAT 		Red Beacon 45mA 24V
ComPro CO ST 70 GL 024 LED Element Green 2 Functions
ComPro CO ST 70 GL 024 LED Element Green 2 Functions
Standard range
Order code: 64-2728
MPN: CO ST 70 GL 024

1 in stock, despatched in 4 working days
1+ £42.31
Price per unit Ex VAT 		Green Beacon 45mA 24V
Mftrs. Part No:CO ST 70 BL 024CO ST 70 GL 024CO ST 70 RL 024
Order code:64-273064-272864-2727
Operating voltage:12 to 24 V AC / DC12 to 24 V AC / DC12 to 24 V AC / DC
Current consumption:45mA45mA45mA
Settings:Continuous lightContinuous lightcontinuous light, flash light, double
flash light, rotating light
Functions:222
IP rating:IP65IP65IP65
Operating temperature:-25°C to +70°C-25°C to +70°C-25°C to +70°C
Lens colour:BlueGreenRed
Material:Lens PC / Base MPPOLens PC / Base MPPOLens PC / Base MPPO
