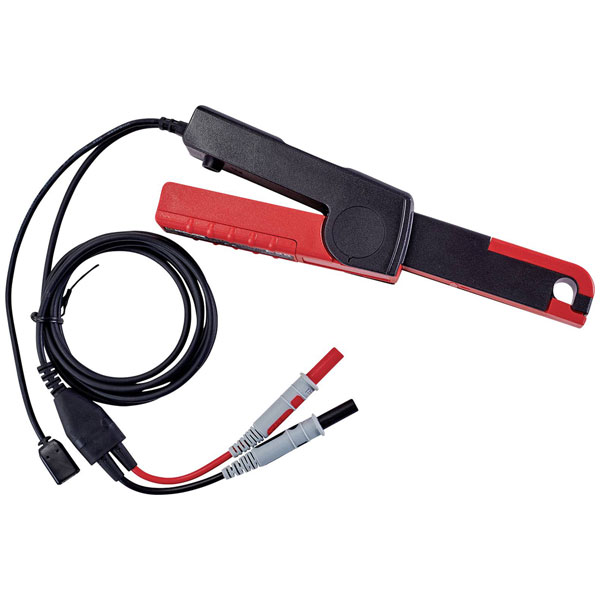

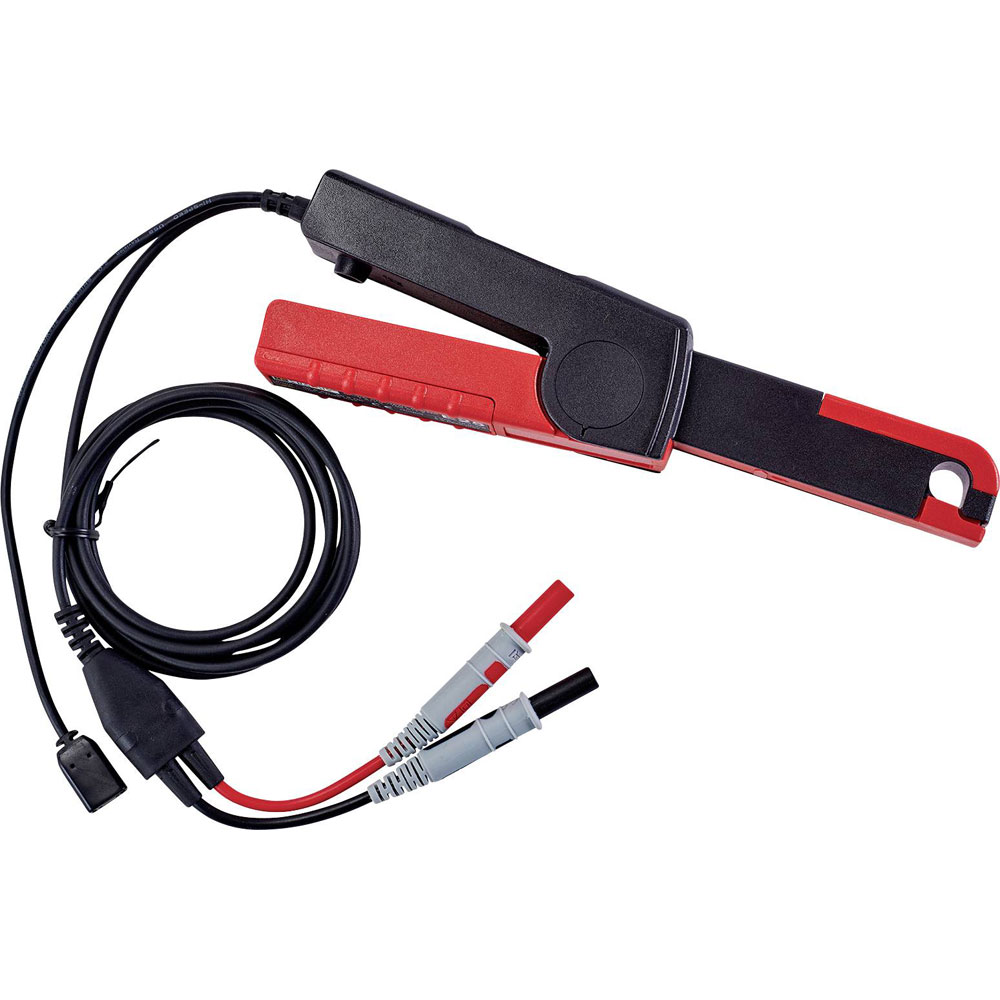

Chauvin Arnoux P01120025 E25 clamp meter adapter 5mA-80A hall effect

Chauvin Arnoux
Standard range
Order Code:

02-2885

Brand: Chauvin Arnoux MPN: P01120025
Qty Unit Price (Ex VAT)
1+ £476.90
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Pre-order1 due on 25/04/2025

The Chauvin Arnoux E25 Clamp meter adapter allows for AC readings from 5 mA to 60 A and DC readings from 5 mA to 80 A. Featuring a Rogowski coil, it is ideal for measuring current in electrical installations and maintenance tasks. Commonly used by electricians and technicians, this adapter aids in precise current testing and analysis.
Type Clamp meter adapter
A AC reading range (min.) 5mA
A DC reading range (max.) 80A
Amperage reading range AC (max.) 60A
Amperage reading range DC (min.) 5mA
Calibrated to Manufacturer's standards (no certificate)
Dim (L x W x H) 231 x 67 x 36 mm
Height 36mm
Length 231mm
Max. frequency 20kHz
Opening range of current clamps 11.8mm
Output signal (max.) 800mV
Type B 4 mm safety plug
Weight 0.33kg
Width 67mm
