CamdenBoss CamCirc CCB Series Multipole Fixed Sockets Flat IP68

CamdenBoss Brand: CamdenBoss

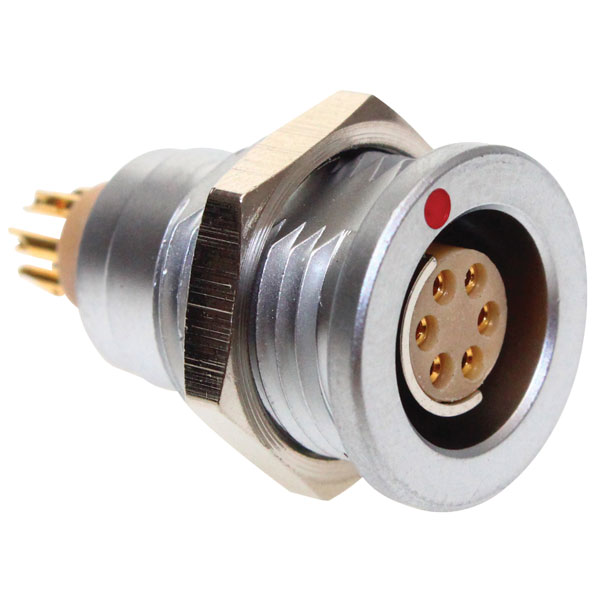

The CamCirc CCB range are a premium range of circular fixed multipole push-pull female connectors. These compact panel mounting connectors feature a vacuum technology design that provides protection to IP68, making the connector suitable for harsh and extreme environments. The connector won't disconnect when the cable is under load or stress. A tough, high performance interconnection solution that is suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural.
  • Panel mount receptacle
  • Choice of number of ways
  • Available in 4 sizes
  • Key coded to prevent disconnection
  • Tested to IEC 60512-3-5a
Description Image Product Buy Pricing (Ex VAT) Number of Contacts Connector Size Wire Gauge (AWG) Type Gender Contact Finish Contact Termination Pin/Socket
CamCirc CCB1S1/03 Circular Connector Receptacle 3 Way Panel Mount 102 Size
CamCirc CCB1S1/03 Circular Connector Receptacle 3 Way Panel Mount 102 Size
Extended range
Order code: 20-1560
MPN: CCB1S1/03

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £17.82
Price per unit Ex VAT 		3 11 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB1S1/04 Circular Connector Receptacle 4 Way Panel Mount 102 Size
CamCirc CCB1S1/04 Circular Connector Receptacle 4 Way Panel Mount 102 Size
Extended range
Order code: 20-1561
MPN: CCB1S1/04

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £18.12
Price per unit Ex VAT 		4 11 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB2S1/03 Circular Connector Receptacle 3 Way Panel Mount 103 Size
CamCirc CCB2S1/03 Circular Connector Receptacle 3 Way Panel Mount 103 Size
Extended range
Order code: 20-1562
MPN: CCB2S1/03

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £19.32
Price per unit Ex VAT 		3 14 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB2S1/04 Circular Connector Receptacle 4 Way Panel Mount 103 Size
CamCirc CCB2S1/04 Circular Connector Receptacle 4 Way Panel Mount 103 Size
Extended range
Order code: 20-1563
MPN: CCB2S1/04

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £31.91
Price per unit Ex VAT 		4 14 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB2S1/06 Circular Connector Receptacle 6 Way Panel Mount 103 Size
CamCirc CCB2S1/06 Circular Connector Receptacle 6 Way Panel Mount 103 Size
Extended range
Order code: 20-1564
MPN: CCB2S1/06

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £34.32
Price per unit Ex VAT 		6 14 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB2S1/07 Circular Connector Receptacle 7 Way Panel Mount 103 Size
CamCirc CCB2S1/07 Circular Connector Receptacle 7 Way Panel Mount 103 Size
Extended range
Order code: 20-1565
MPN: CCB2S1/07

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £21.68
Price per unit Ex VAT 		7 14 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB2S1/08 Circular Connector Receptacle 8 Way Panel Mount 103 Size
CamCirc CCB2S1/08 Circular Connector Receptacle 8 Way Panel Mount 103 Size
Extended range
Order code: 20-1566
MPN: CCB2S1/08

Order in multiples of 25


Available to back orderBack-order availability date - 18/10/2026
25+ £29.12
Price per unit Ex VAT 		8 14 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB3S1/19 Circular Connector Receptacle 19 Way Panel Mount 1031 Size
CamCirc CCB3S1/19 Circular Connector Receptacle 19 Way Panel Mount 1031 Size
Extended range
Order code: 20-1567
MPN: CCB3S1/19

Order in multiples of 50


Available to back orderBack-order availability date - 18/10/2026
50+ £27.23
Price per unit Ex VAT 		19 26 - 28 Circular, Panel Mount Female Gold plated Solder Socket
CamCirc CCB4S1/19 Circular Connector Receptacle 19 Way Panel Mount 104 Size
CamCirc CCB4S1/19 Circular Connector Receptacle 19 Way Panel Mount 104 Size
Extended range
Order code: 20-1568
MPN: CCB4S1/19

Order in multiples of 50


Available to back orderBack-order availability date - 18/10/2026
50+ £30.47
Price per unit Ex VAT 		19 18.9 mm dia 21 - 22 Circular, Panel Mount Female Gold plated Solder Socket
Order code20-156020-156120-156220-156320-1564
Part numberCCB1S1/03CCB1S1/04CCB2S1/03CCB2S1/04CCB2S1/06
No. of pins34346
Size102102103103103
Contact dia.0.9mm0.7mm1.3mm0.9mm0.7mm
Max. stranded conductorAWG 21-22AWG 21-22AWG 17-18AWG 21-22AWG 21-22
Max. diameter0.79mm0.79mm1.18mm1.18mm0.79mm
Rated current8.2A5.5A12A7A5.2A
Rated voltage≤ 250V≤ 200V≤ 250V≤ 250V≤ 250V

Order code20-156520-156620-156720-1568
Part numberCCB2S1/07CCB2S1/08CCB3S1/19CCB4S1/19
No. of pins781919
Size1031031031104
Contact dia.0.7mm0.7mm0.5mm0.7mm
Max. stranded conductorAWG 21-22AWG 21-22AWG 26-28AWG 21-22
Max. diameter0.79mm0.79mm0.79mm0.79mm
Rated current5A3.9A3.9A3.5A
Rated voltage≤ 250V≤ 200V≤ 200V≤ 200V
