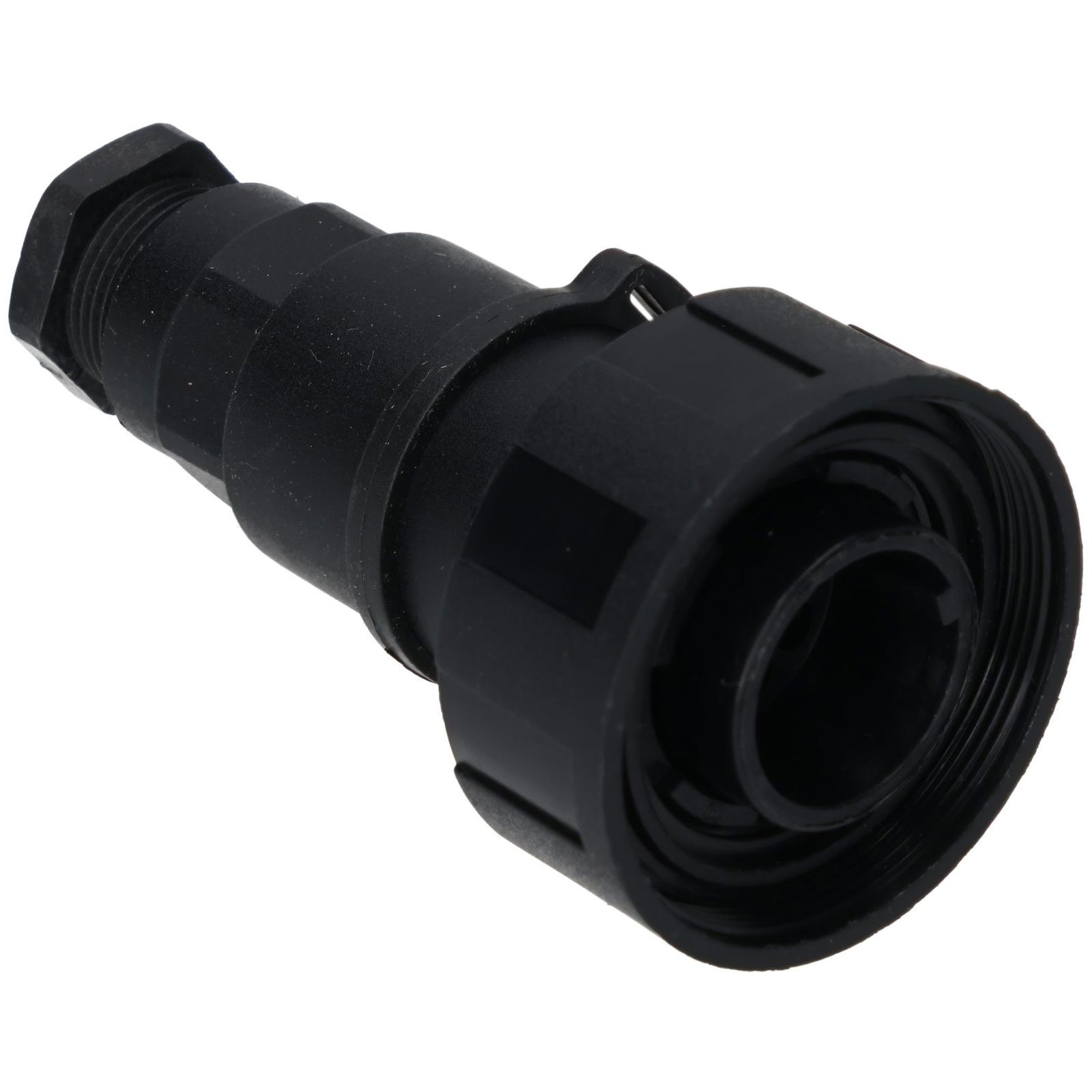

Bulgin PX0728/P Flex Cable Plug with Lock Nut 9P 150V 5A Crimp IP68

The Bulgin PX0728/P is a robust flex cable connector from the Standard Buccaneer series, designed for demanding environments where secure and reliable electrical connections are essential. It features a 9-contact plug with crimp termination, supplied with loose contacts, and supports cable diameters between 6mm and 8mm. Constructed from glass-filled polyamide, the connector offers excellent mechanical strength and durability, while maintaining a compact form factor with a coupling ring diameter of 38.1mm.

Rated to IP68 and IP69K when mated with a compatible connector, the PX0728/P is suitable for use in harsh conditions involving dust, water, and high-pressure cleaning. It operates within a temperature range of -20°C to +70°C and supports a maximum current of 5A at up to 150V. The connector accommodates wire sizes from 24AWG to 26AWG (0.14mm² to 0.25mm²), making it ideal for low-voltage signal and control applications.

This connector is part of a modular system that allows for various termination styles and colour-coded inserts for easy identification. It mates with other PX07 series inline and panel-mount connectors, and accessories such as sealing caps and cable supports are available to enhance installation and performance. The PX0728/P is certified to CSA, UL, and VDE standards, ensuring compliance with international safety and quality requirements.
