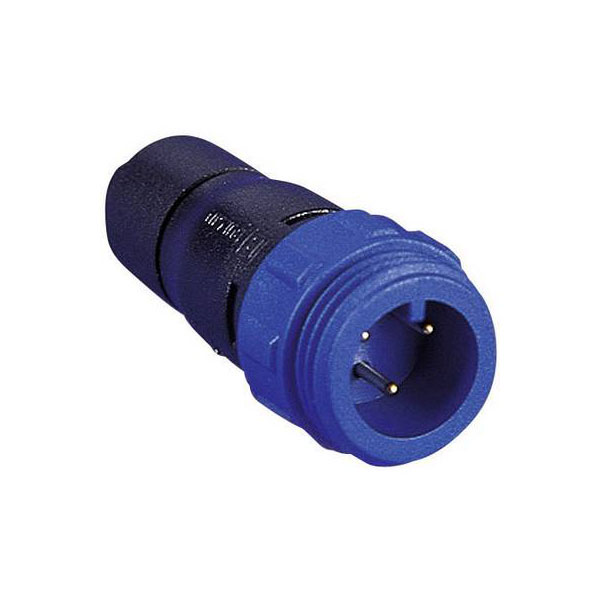

The Bulgin PX0411/08P/6065 is a sealed inline cable connector from the 400 Series Buccaneer range, designed to deliver reliable power and signal connections in demanding industrial, marine and outdoor environments.
Featuring 8 plug contacts, a secure screw-lock coupling mechanism and a cable gland suitable for cable diameters between 6.0mm and 6.5mm, this connector provides a robust cable-to-cable interconnection solution with excellent environmental protection. It mates directly with PX0400, PX0402 and PX0410 Buccaneer flex cable connectors.
Features
- 400 Series Buccaneer inline cable connector
- 8 plug contacts
- Designed for inline cable-to-cable connections
- Secure screw-lock coupling mechanism
- Supplied with cable gland and collet for 6.0mm to 6.5mm cable diameter (white coded)
- Contacts supplied separately
- IP68 rated when mated, tested at 10m depth for 2 weeks
- IP69K rated for high-pressure washdown environments
- Gold-plated contact system for reliable electrical performance
- 2.5mm contact engagement for enhanced electrical integrity
- Flame-retardant polyamide housing (UL94 V-0)
- Mates with PX0400, PX0402 and PX0410 Buccaneer flex cable connectors
Electrical Specifications
- Number of contacts: 8
- Current rating: 5A
- Voltage rating: 125V AC/DC
- Contact resistance: <5mΩ
- Insulation resistance: >10⁶MΩ @ 500VDC
- AC breakdown voltage: 2.5kV
Mechanical & Environmental
- Connector type: Inline cable connector
- Contact engagement: 2.5mm
- Operating temperature: -40°C to +80°C
- Cable acceptance: 3.0mm to 7.0mm (configured with 6.0mm to 6.5mm gland set)
- Housing material: Polyamide
- Flammability rating: UL94 V-0
- Environmental protection: IP68 and IP69K
- Salt mist resistance: EN60068-2-52 Test Kb, Marine Severity Level 1
Applications
- Industrial automation and control systems
- Cable extension and interconnection systems
- Marine electrical installations
- Outdoor electrical equipment
- Instrumentation and monitoring equipment
- Harsh-environment signal and power connections
| Type |
Bullet connector |
| Number of Contacts |
8 |
| Orientation |
180° |
| Cable Diameter |
6mm |
| Colour |
Black, Blue |
| Connector Type |
Plug, straight |
| IP Rating |
IP68 |
| Material |
PA |
| Nominal Current |
5A |
| Nominal Voltage |
125V |
| Number of pins |
8 |
| Series |
PX04 |
