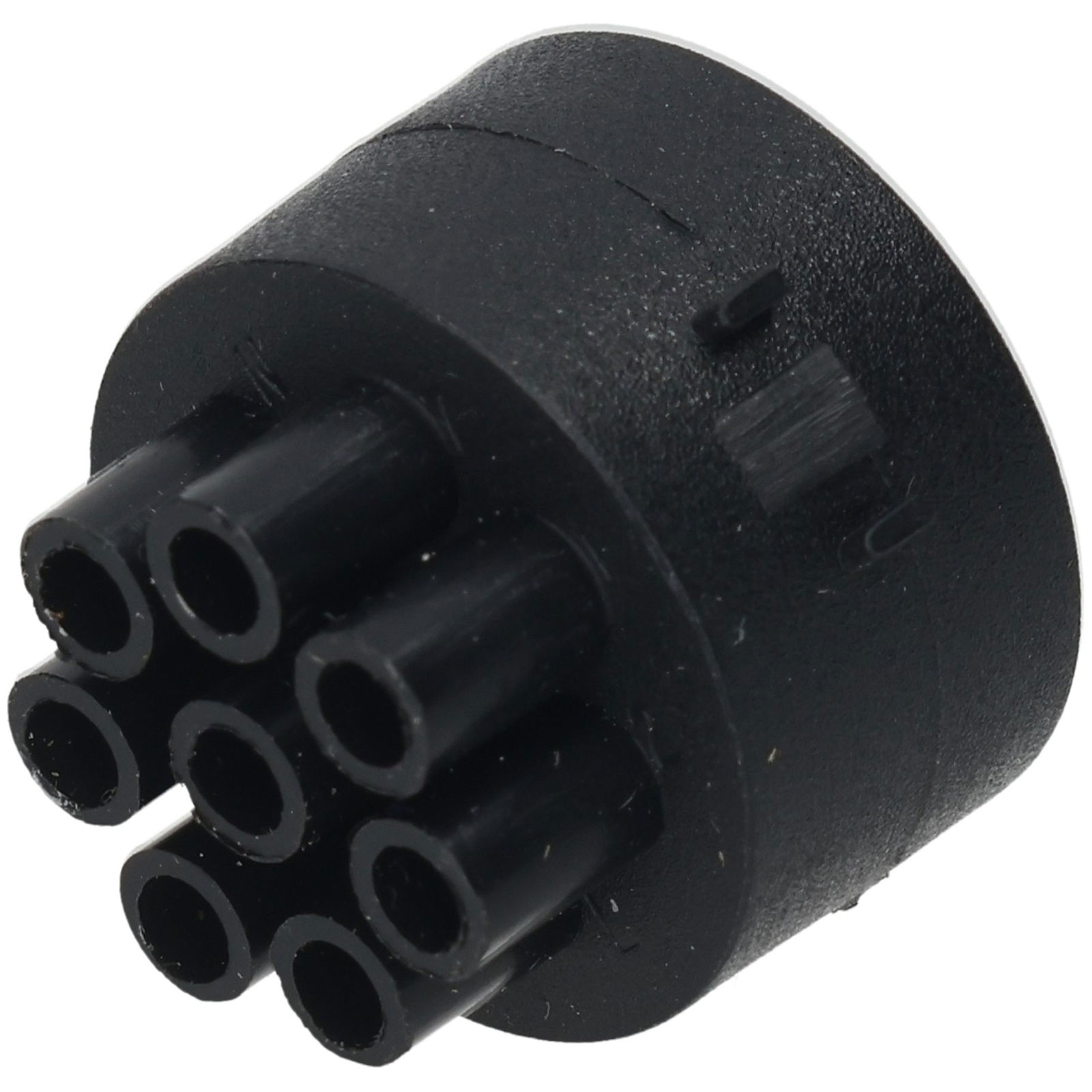

Bulgin 12734/1 Mini Buccaneer 8 Pole Solder Contact Carrier Insert Plug

The Bulgin 12734/1 is an 8-contact plug insert from the Mini Buccaneer range, designed for use with solder-terminated contacts in compact circular connector assemblies. Suitable for demanding industrial, automation and electronic equipment applications, it forms part of Bulgin's modular Mini Buccaneer system, allowing users to configure connectors using a combination of casings, inserts and contacts.

This contact carrier insert accommodates 8 solder contacts and is compatible with all Mini Buccaneer body styles, including flex cable, inline cable and panel mounting connector housings. The insert is supplied without contacts, enabling users to select the appropriate solder contacts separately to suit their application requirements.

Designed for reliable performance in harsh environments, the Mini Buccaneer system provides IP68 environmental protection when mated, offering excellent resistance to dust and water ingress while maintaining a compact form factor for installations where space is limited.

Features

• Mini Buccaneer 8 pole contact carrier insert plug

• Designed for solder-terminated contacts

• Compatible with all Mini Buccaneer connector body styles

• Modular connector system for flexible configuration

• Black insert construction

• Contacts supplied separately

• Suitable for compact power and signal connections

• Positive locating system to prevent mis-mating

• Supports IP68 sealing when installed within a mated Mini Buccaneer assembly

• Constructed from UL94V-0 rated materials

• Compatible with SA3148/1 solder pin contacts

• Suitable for use with Mini Buccaneer flex, inline and panel mount connector housings

Electrical Specifications

• Number of contacts: 8

• Current rating: 5A

• Voltage rating: 380V AC

• Contact resistance: <5mΩ

• Insulation resistance: >10⁶MΩ at 500V DC

• Voltage proof: 2kV at 50Hz

• Approvals: UL Recognised (E214972)

Mechanical & Environmental

• Connector type: Contact carrier insert plug

• Contact termination: Solder contacts (supplied separately)

• Operating temperature: -20°C to +70°C

• Insert material: Polyamide, UL94V-0 rated

• Contact material: Copper alloy, gold plated over nickel (when used with compatible contacts)

• Environmental protection: IP68 when assembled within a mated Mini Buccaneer connector

• Salt mist resistance: EN60068-2-52 Test Kb, Marine Severity Level 1

• Contact accommodation: 0.2mm² to 0.5mm² (20AWG to 24AWG) with compatible contacts

• Typical insertion force: 14N (8 way)

• Typical withdrawal force: 12N (8 way)

Applications

• Industrial automation equipment

• Control and instrumentation systems

• Telecommunications hardware

• Medical devices

• Compact power and signal interconnections

• Outdoor and environmental monitoring equipment

• Marine and transportation electronics

• Space-constrained equipment requiring sealed circular connections
