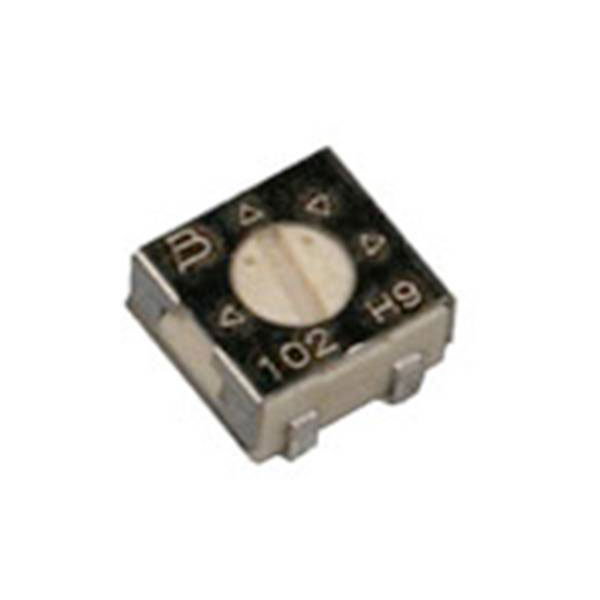

Bourns 3314J-1-504E Cermet trimmer 0.25W 500kΩ 210° 240° 1pcs

Bourns 3314J-1-504E is a precision-engineered cermet trimmer, commonly referred to by its alternate description, 2996269 - Bourns 3314J-1-504E. This compact trimmer potentiometer is designed for fine-tuning applications, offering a resistance value of 500kO and a power rating of 0.25 watts. It features an adjustable rotation angle ranging from 210° to 240° for optimal calibration, ensuring precise control over electrical circuits. The Bourns 3314J-1-504E is typically utilised in industrial and consumer electronics, including signal processing equipment, instrumentation, and communication devices, where stable and repeatable parameter settings are essential. Its robust cermet construction provides enhanced temperature stability and reliability over a wide range of environmental conditions.

Resistance	500kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.35mm
Dimensions	(L x W x H) 4.5 x 4.5 x 2.55 mm
Electrical Angle	210°
Height	2.55mm
Length	4.5mm
Maximum Temperature	125°C
Mechanical Angle	240°
Minimum Temperature	-55°C
No. of rotations	1
Operation type	top
Product Type	Cermet trimmer
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	4.5mm
