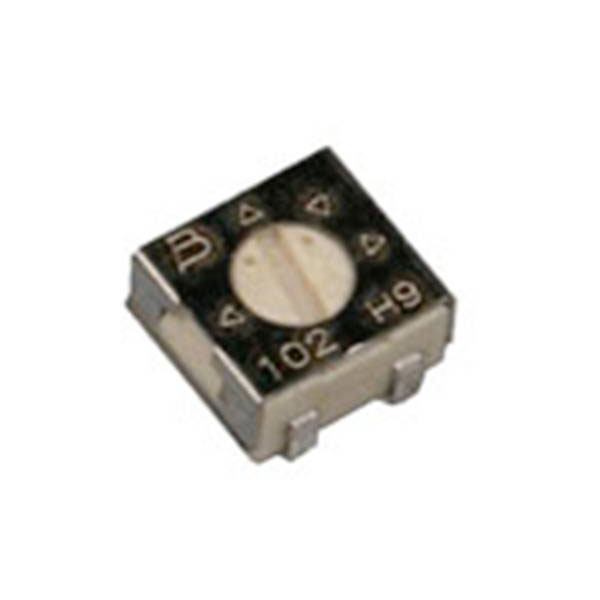

Bourns 3314J-1-502E Cermet trimmer 0.25 W 5 kΩ 210° 240° 1 pc

Bourns 3314J-1-502E is a precision cermet trimmer potentiometer designed to provide reliable performance in electronic circuit applications. This product, also referred to by the alternate description 2996267, features a resistance value of 5 kO with a power rating of 0.25 watts, making it suitable for fine-tuning and calibration tasks in various electronic devices. The trimmer offers a rotational adjustment range of 210° to 240°, allowing for precise resistance setting. Its compact and robust design is ideally suited for use in applications such as signal processing, sensor calibration, and instrumentation where accurate resistance control is essential.

Type	Cermet Trimmer
Resistance	5kO
Tolerance	20%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	1
Pitch	2.3 x 4mm
Connection	SMT
Content	1
Cross Section	2.35mm
Dimensions	(L x W x H) 4.5 x 4.5 x 2.55 mm
Electrical Angle	210°
Height	2.55mm
Length	4.5mm
Maximum Temperature	125°C
Mechanical Angle	240°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	4.5mm
