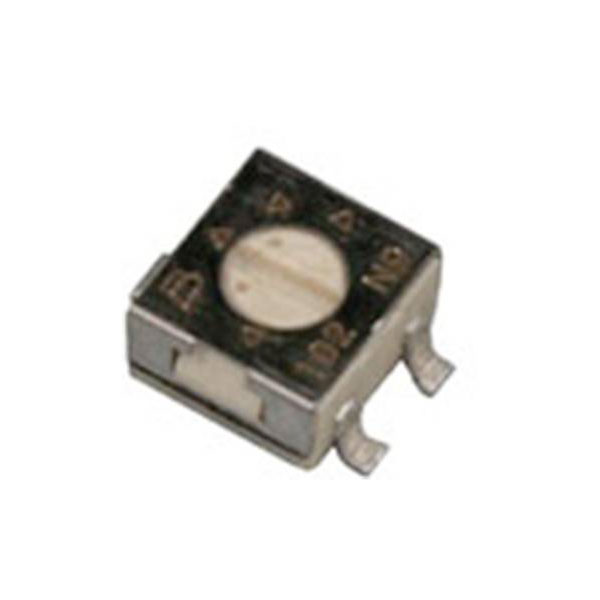

Bourns 3314G-1-103E Cermet trimmer 0.25 W 10 kΩ 210° 240° 1 pc

Bourns 3314G-1-103E is a cermet trimmer resistor, also known by the alternate description 2996253, designed for precision resistance control in electronic circuits. This trimmer offers a resistance of 10 kO, with a power rating of 0.25 watts, and is constructed to allow for a rotational range from 210° to 240°, providing enhanced adjustability in fine-tuning applications. It is that ensures reliable performance for calibration and tuning purposes in instrumentation, consumer electronics, and communication devices. The trimmer's durability and precision make it an ideal choice for engineers seeking stable and dependable variable resistive components.

Type	Cermet Trimmer
Resistance	10kΩ
Tolerance	20%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	1
Pitch	2.3 x 4mm
Connection	SMT
Content	1
Cross Section	2.35mm
Dimensions	(L x W x H) 4.5 x 4.5 x 2.55 mm
Electrical Angle	210°
Height	2.55mm
Length	4.5mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	240°
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	4.5mm
