Bourns 3314G-1-101E Cermet trimmer 0.25 W 100 Ω 210° 240° 1 pc Trimmers

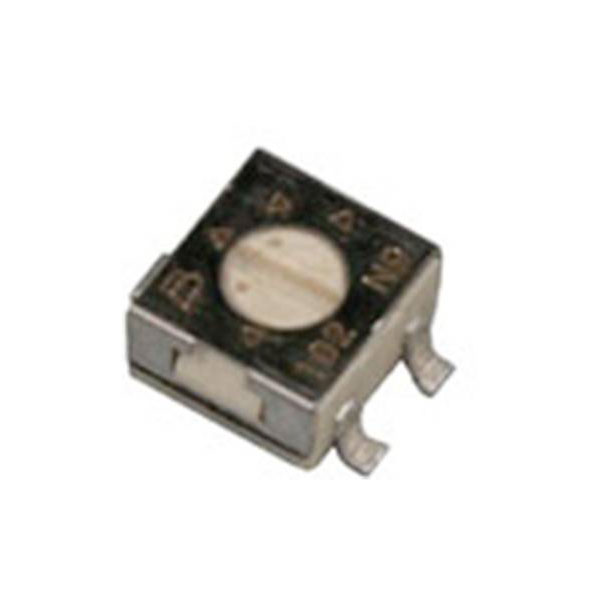

Bourns 3314G-1-101E is a high-precision cermet trimmer, listed as product number 2996252. This component features a resistive value of 100 ohms and is capable of handling a power rating of 0.25 watts, making it suitable for fine-tuning and calibrating applications in electronic circuits. The trimmer offers an adjustable range of rotation between 210 degrees and 240 degrees, providing engineers with precise control over resistance adjustments. Commonly employed in signal processing, audio equipment, and instrumentation, the Bourns 3314G-1-101E ensures reliability and accuracy in settings that demand stable performance amidst fluctuating environmental conditions.

Type	Cermet Trimmer
Resistance	100O
Tolerance	20%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	1
Pitch	2.3 x 4mm
Connection	SMT
Content	1
Cross Section	2.35mm
Dimensions	(L x W x H) 4.5 x 4.5 x 2.55 mm
Electrical Angle	210°
Height	2.55mm
Length	4.5mm
Maximum Temperature	125°C
Mechanical Angle	240°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100
Tolerance ±	20%
Width	4.5mm
