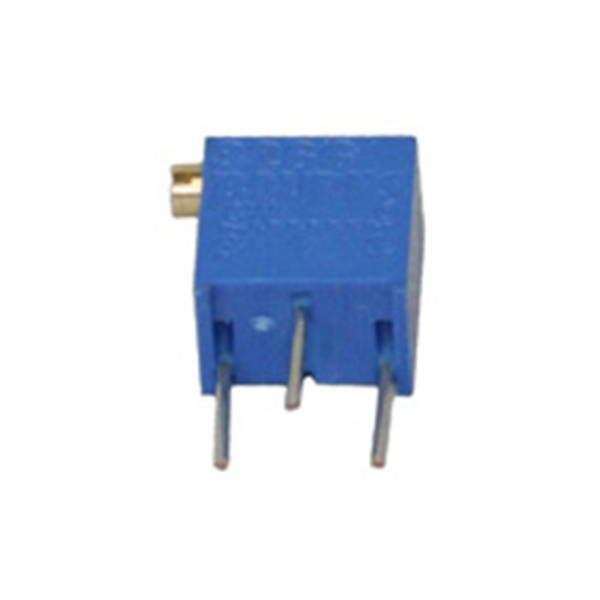

Bourns 3266X-1-504LF Cermet trimmer linear 0.25 W 500 kΩ 4320 ° 1 pc

Bourns 3266X-1-504LF is a precise cermet trimmer potentiometer designed with a resistance value of 500 kO and capable of handling a power rating of 0.25 watts. Classified as , this component is also identified by an alternate description, 2996171 - Bourns 3266X-1-504LF. Featuring a linear taper, the trimmer offers high reliability and precision, with a rotational angle of 4320 degrees to ensure accurate adjustment. Typical applications include use in calibration and tuning circuits where fine adjustment of electrical resistance is essential, across various sectors such as telecommunications, instrumentation, and medical devices. Its robust construction and stable performance make it ideal for environments requiring precision and durability.

Type	Cermet Trimmer
Resistance	500kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
