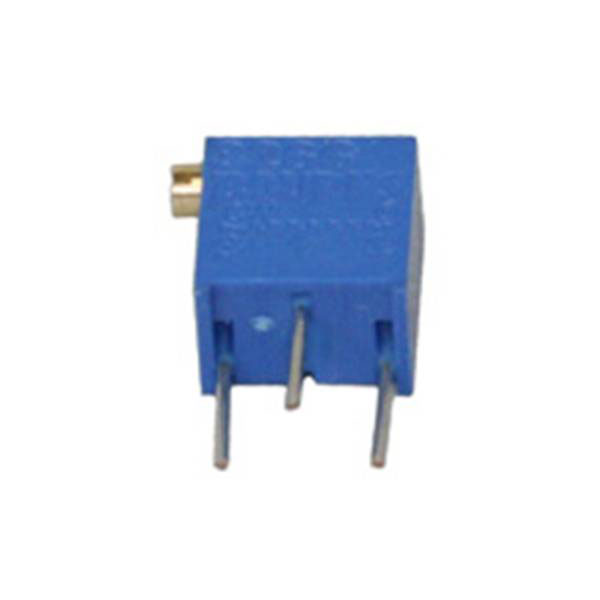

Bourns 3266X-1-503LF 3266X Cermet trimmer 0.25W 50kΩ 4320° 1 piece

Bourns 3266X-1-503LF is a precision cermet trimmer designed for fine-tuning circuit parameters. This product boasts a resistance value of 50 kO and a rotational capability of 4320 degrees, allowing for precise resistance adjustments within electronic circuits. Rated at 0.25 watts, the trimmer is suitable for applications requiring reliable and stable performance, such as setting reference voltages or adjusting gain in amplifiers. Known alternatively as 2996170, the 3266X-1-503LF is commonly utilised in instrumentation, telecommunications, and other sensitive electronic applications where precise calibration is critical.

Resistance	50kΩ
Power Rating	0.25W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
