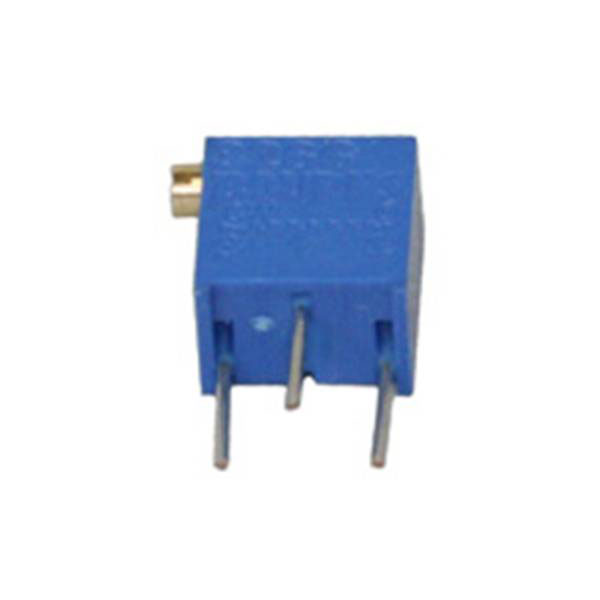

Bourns 3266X-1-501LF Cermet trimmer linear 0.25 W 500 Ω 4320 ° 1 pc

Bourns 3266X-1-501LF is the manufacturer's part number for a precise cermet trimmer potentiometer. This product variant is also known by the alternate description 2996168. With a linear resistance track of 500 ohms and a power rating of 0.25 watts, this component features an adjustment span of 4320°, allowing for fine tuning in circuit applications. Ideally suited for electronics requiring precise resistance calibration, such as in calibration equipment, sensor signal conditioning, and audio systems, the Bourns 3266X-1-501LF provides reliability and stability essential for demanding engineering applications.

Resistance	500Ω
Power Rating	0.25W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
