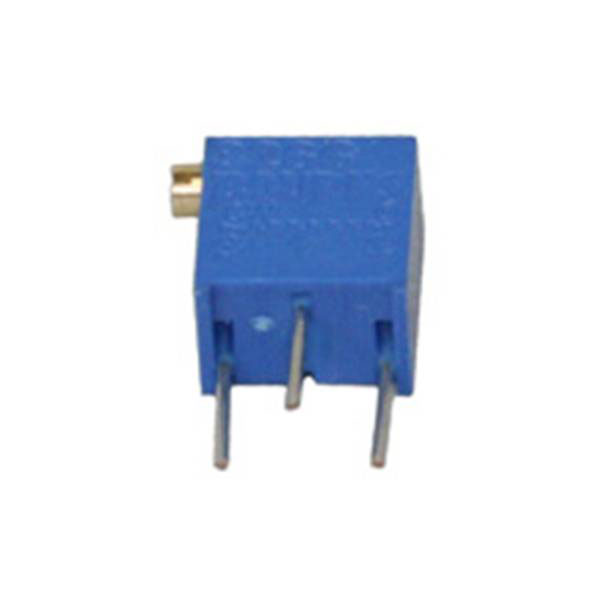

Bourns 3266X-1-104LF Cermet trimmer linear 0.25W 100kΩ 4320° 1pc

Bourns 3266X-1-104LF Cermet trimmer linear is , also known by the alternate description 2996165 - Bourns 3266X-1-104LF. This precision trimmer potentiometer offers a resistance of 100kO, with a robust power rating of 0.25 watts, suitable for fine-tuning within electronic circuits. Featuring a 4320° adjustment rotation, it allows for precise control and stability in various applications. Commonly utilised in tuning circuits, instrumentation adjustment, and calibration tasks, this trimmer is designed to provide reliable performance in settings where accuracy and long-term resistance stability are critical.

Type	Cermet Trimmer
Resistance	100kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
