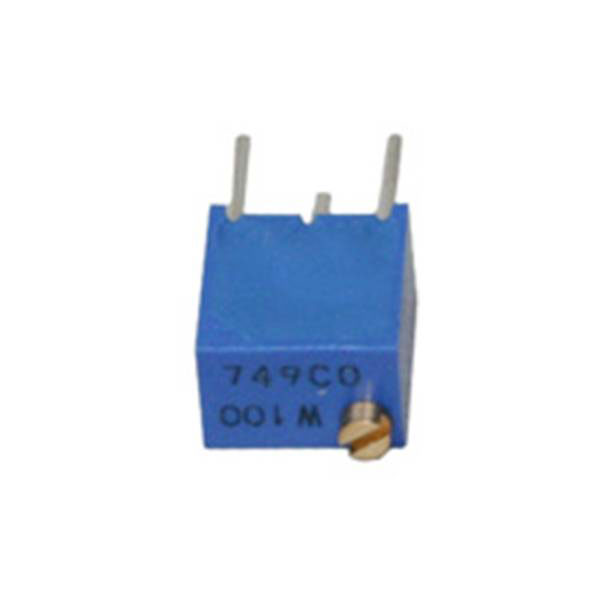

Bourns 3266W-1-204LF Cermet trimmer linear 0.25 W 200 kΩ 4320 ° 1 pc

Bourns 3266W-1-204LF is a precision cermet trimmer potentiometer designed for applications requiring reliable linear resistance adjustment. This product, also identified as 2996155, offers an adjustable resistance of up to 200 kO with a power rating of 0.25 watts, providing fine-tuning precision in electronic circuits. With a full rotation angle of 4320 degrees, this component ensures enhanced resolution for calibrating sensitive equipment. Typically utilised in applications such as signal conditioning, calibration controls, and feedback circuits in industrial, automotive, and consumer electronics, the 3266W-1-204LF is engineered to deliver long-term stability and reliability in demanding environments.

Resistance	200kΩ
Power Rating	0.25W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
