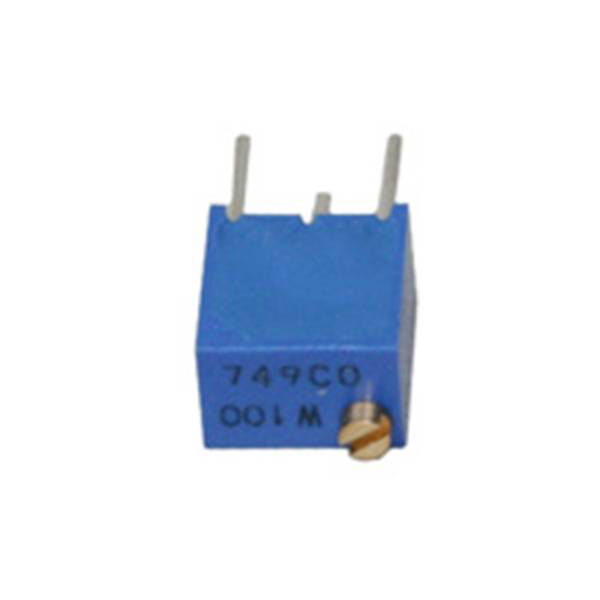

Bourns 3266W-1-100LF Cermet trimmer linear 0.25 W 10 Ω 4320° 1 pc Trimmers

Bourns 3266W-1-100LF represents a compact and precise cermet trimmer resistor designed to deliver an adjustable resistance of 10 ohms, suitable for fine-tuning in electrical circuits. With a power rating of 0.25 watts, this component is engineered with a rotational life of 4320 degrees, ensuring reliable performance over multiple adjustments. This product under alternate description 2996146 is ideal for precision calibration in applications such as signal processing, industrial automation, and instrumentation control systems. The Bourns trimmer's robust cermet construction offers excellent stability, temperature coefficient, and resistance to environmental factors, making it a valuable component for engineers seeking dependable performance in high-precision electronic assemblies.

Type	Cermet Trimmer
Resistance	10Ω
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
