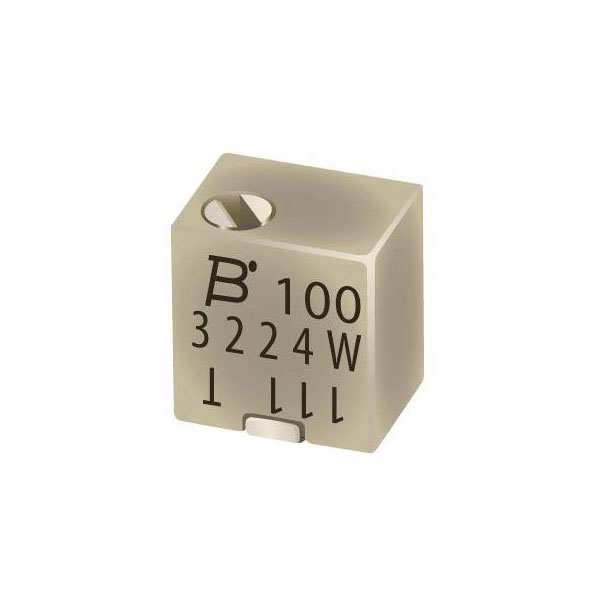

Bourns 3224X-1-103E cermet trimmer linear 0.25 W 10 kΩ 4320° 1 pc

Bourns 3224X-1-103E is a precision cermet trimmer potentiometer, designed for applications requiring fine tuning and adjustment in electronic circuits. This product offers a resistance value of 10 kO and has a power rating of 0.25 watts, making it suitable for use in low-power electronic devices. The linear trimmer features a rotational adjustment of 4320 degrees, allowing precise control over the resistance value, which can be crucial in calibration tasks. Engineered for durability and reliability, it is commonly used in variable voltage dividers, sensor gain adjustments, and signal conditioning circuits. Known alternately as 2996143, the Bourns 3224X-1-103E provides engineers with a robust component for crafting fine-tuned electronic solutions.

Resistance	10kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.5mm
Dimensions	(L x W x H) 4.8 x 3.5 x 5.3 mm
Electrical Angle	4320°
Height	5.3mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	3.5mm
