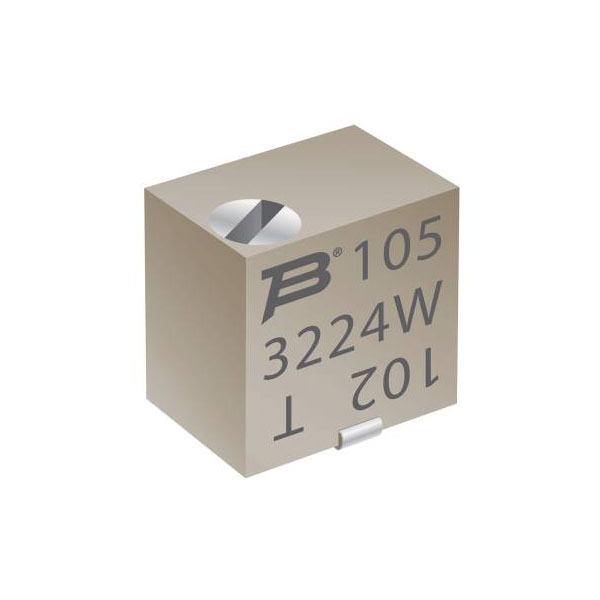

Bourns 3224W-1-503E Cermet trimmer linear 0.25 W 50 kΩ 4320° 1 pc

Bourns 3224W-1-503E is cermet trimmer featuring a linear resistance adjustment with a rated power of 0.25 watts and a resistance value of 50 kO, providing a full 4320-degree adjustment range for precision tuning. Identified by the alternate description number 2996141, this trimmer is designed for applications requiring reliable performance and fine-tuning capabilities such as in calibration circuits, precision feedback circuits, and adjustable oscillator circuits. Engineered to meet demanding specifications, the durable construction is ideal for environments where accurate and consistent resistance modification is critical in analogue and digital devices.

Type	Cermet Trimmer
Resistance	50kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	12
Pitch	2.54mm
Connection	SMT
Content	1
Cross Section	2.5mm
Dimensions	(L x W x H) 4.8 x 3.5 x 5.3 mm
Electrical Angle	4320°
Height	5.3mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	3.5mm
