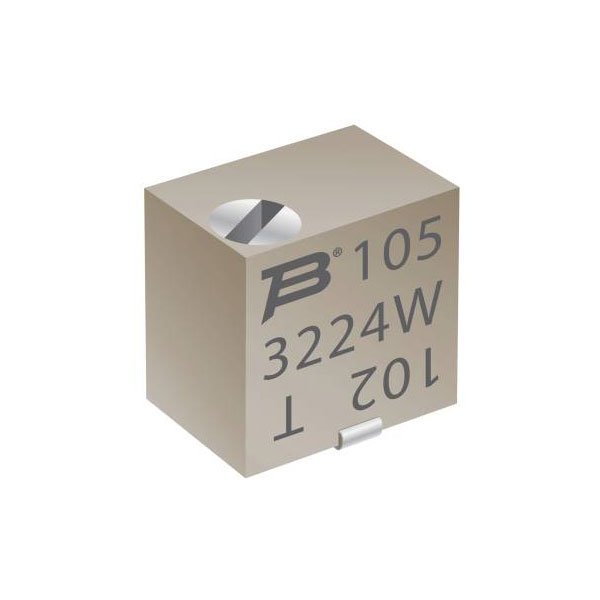

Bourns 3224W-1-104E Cermet trimmer linear 0.25 W 100 kΩ 4320 ° 1 pc

Bourns 3224W-1-104E Cermet Trimmer Potentiometer, is a precise and reliable product offering an adjustable linear resistance of 100 kO with a power rating of 0.25 watts. This trimmer is distinguished by its rotational life of 4320°, suitable for fine-tuning and calibration tasks in electronic circuits. The 3224W-1-104E, also referred to as 2996135, features a cermet element, which provides stability and reliability under varying environmental conditions. It is primarily utilised in applications requiring precise voltage division or signal conditioning, such as in analogue signal processing or varying the resistance in feedback loops for amplifiers and filters. Its compact design makes it ideal for use in printed circuit boards where space is at a premium.

Resistance	100kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.5mm
Dimensions	(L x W x H) 4.8 x 3.5 x 5.3 mm
Electrical Angle	4320°
Height	5.3mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	3.5mm
