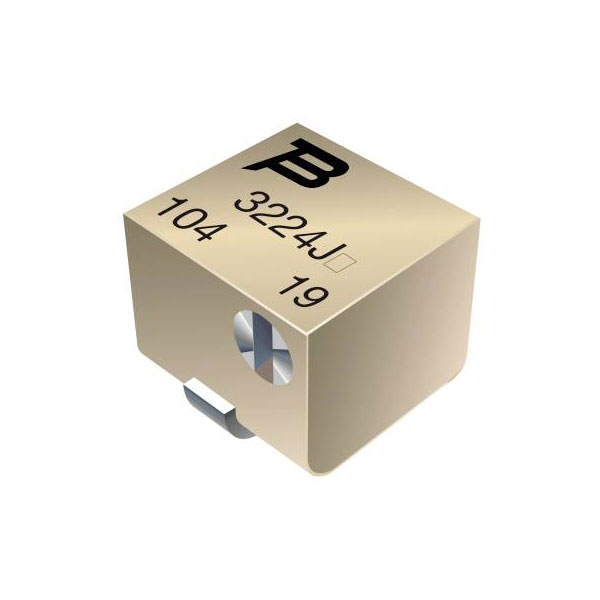

Bourns 3224J-1-502E Cermet trimmer linear 0.25W 5kΩ 4320° single pack

Bourns 3224J-1-502E is a cermet trimmer potentiometer that offers precise resistance adjustment with a resistance value of 5 kO. This component is rated for a linear 0.25W power capacity and provides a full mechanical angle of 4320°, ensuring high adjustability and reliability in tuning circuits. Utilising cermet technology, it provides excellent stability and resistance to environmental changes, making it suitable for use in demanding circuits where precision is crucial. Typically, this trimmer is employed in electronic applications such as calibrating control circuits, adjusting and tuning amplifiers, and setting bias levels in various electronic devices. Its robust design and fine adjustment capabilities make it an ideal choice for professional engineering projects requiring reliable and accurate resistance settings.

Resistance	5kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	4.8mm
Dimensions	(L x W x H) 4.8 x 4.6 x 3.71 mm
Electrical Angle	4320°
Height	3.71mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.6mm
