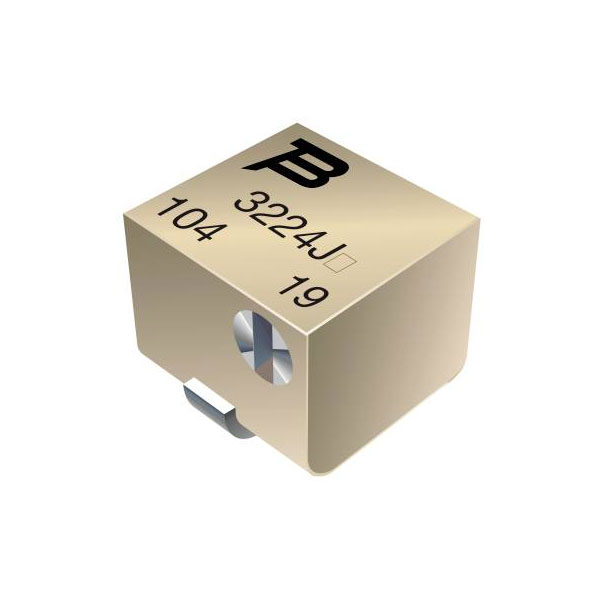

Bourns 3224J-1-202E Cermet trimmer linear 0.25 W 2 kOhm 4320°

Bourns 3224J-1-202E, 2996128, is a precise cermet trimmer potentiometer with a linear resistance value of 2 kOhm and a power rating of 0.25 watts. This product offers fine adjustability across 4320 degrees of rotation, providing reliable performance in tuning and calibration applications. Designed to facilitate stability and longevity, the 3224J-1-202E is commonly used in circuits requiring precise voltage division, such as those found in instrumentation, communication equipment, and control systems. Its compact form factor allows for integration into high-density printed circuit board designs, offering engineers an efficient solution for fine-tuning resistive loads.

Resistance	2kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	4.8mm
Dimensions	(L x W x H) 4.8 x 4.6 x 3.71 mm
Electrical Angle	4320°
Height	3.71mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.6mm
