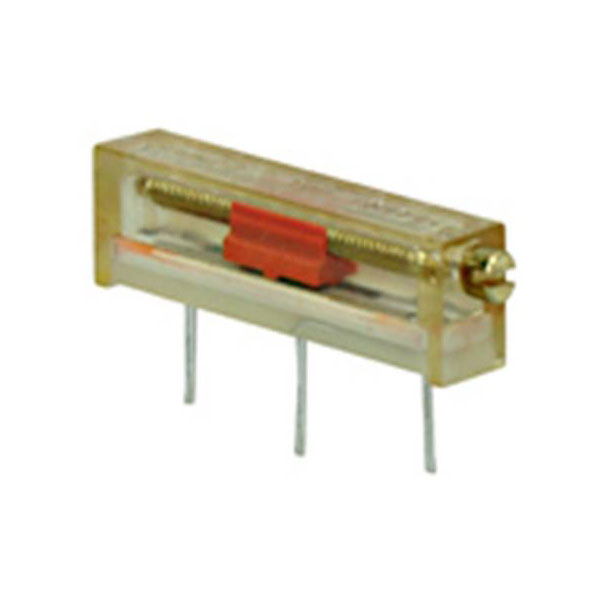

Bourns 3006P-7-502LF Cermet trimmer linear 0.75 W 5 kΩ 5400 ° 1 pc

Bourns 3006P-7-502LF is a high-quality cermet trimmer featuring a resistance value of 5 kO, offering a linear adjustment mechanism and rated power of 0.75 W. This component, also known by the alternate description 2996120, is engineered to provide precision in resistance tuning, especially in environments demanding fine adjustments. It boasts a robust design with a rotational range of 5400 degrees, ensuring accurate control in applications such as calibration circuits, variable frequency oscillators, and general adjustment tasks in electronic devices. The Bourns trimmer is that can be effectively utilised by engineers in the development and maintenance of complex electronic systems where precise resistance modification is essential.

Type	Cermet Trimmer
Resistance	5kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
