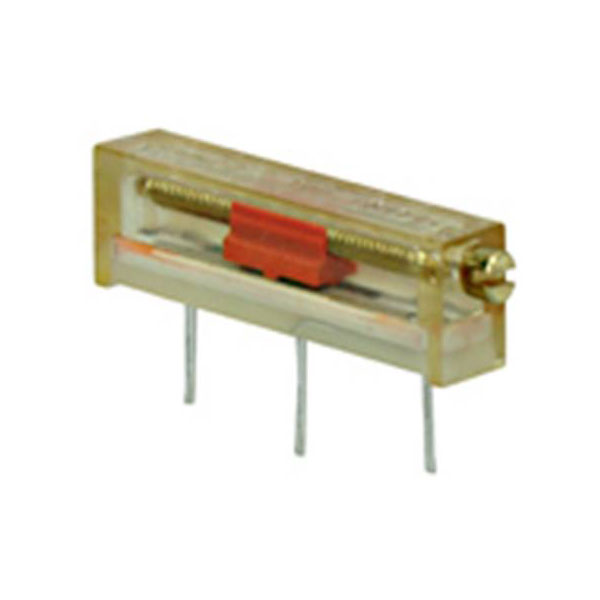

Bourns 3006P-7-204LF Cermet trimmer linear 0.75 W 200 kΩ 5400 ° 1 pc

Bourns 3006P-7-204LF is a precisely engineered cermet trimmer with a linear resistance taper, boasting a power rating of 0.75 watts and a resistance of 200 kilohms. It features a rotational range of 5400 degrees, allowing for fine adjustments in electronic circuits to achieve desired resistance values efficiently. This trimmer is an ideal choice for applications requiring precise calibration, such as in test and measurement equipment, communication devices, and industrial control systems, where stability and reliability are paramount. The part is also alternatively described by the identifier 2996117, ensuring compatibility with a wide range of technical specifications in modern engineering designs. As from Bourns, it aligns with rigorous design standards to deliver optimal performance in a variety of professional settings.

Type	Cermet Trimmer
Resistance	200kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
