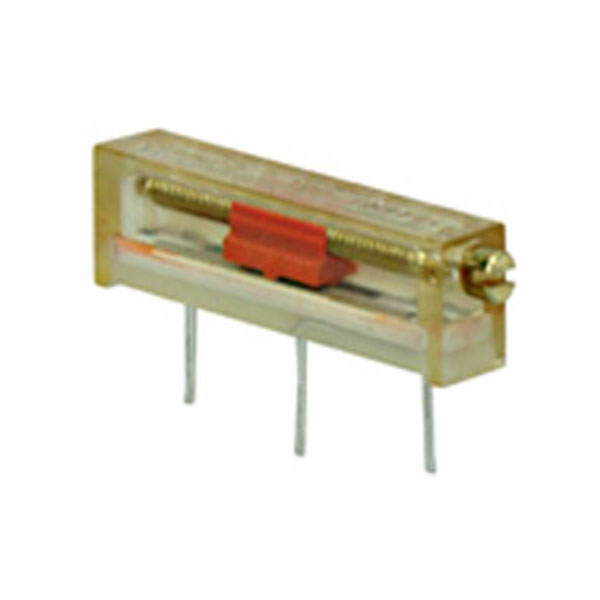

Bourns 3006P-7-202LF Cermet trimmer linear 0.75 W 2 kΩ 5400° 1 pc

Bourns 3006P-7-202LF is a high-quality cermet trimmer designed for precision applications, available under the alternate description 2996115. This linear trimmer potentiometer offers a resistance value of 2 kO, with a power rating of 0.75 watts and a full adjustment range of 5400 degrees, providing fine-tuning capabilities in electronic circuits. Widely utilised in applications requiring precise calibration such as in audio equipment, instrumentation, and telecommunications, its robust construction ensures reliable performance over extended use. The Bourns 3006P-7-202LF, as , is engineered to support effective control of resistance in various circuit designs, ensuring adaptability and precision for engineers seeking dependable components.

Type	Cermet Trimmer
Resistance	2kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
