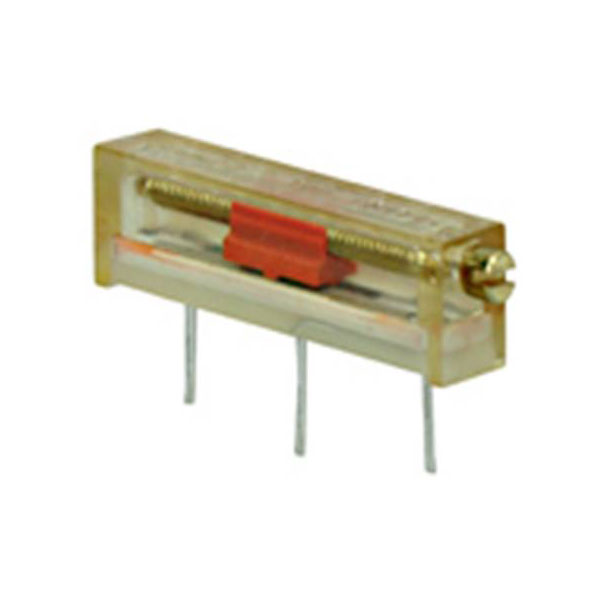

Bourns 3006P-7-104LF Cermet trimmer linear 0.75 W 100 kΩ 5400° 1 pc

Bourns 3006P-7-104LF is a precision cermet trimmer potentiometer marked by its robust design, offering a resistance of 100 kO with a maximum power rating of 0.75 watts. This product, also referred to by its alternate description 2996112, is engineered to provide a reliable performance over its 5400-degree rotational span, suitable for precise linear adjustments. The 3006P-7-104LF is commonly utilised in electronic circuits requiring tuning or calibration, including audio equipment, instrumentation, and industrial control systems where stable and accurate resistance adjustment is critical. Its construction ensures durability and reliable operation, meeting the demands of various professional applications.

Type	Cermet Trimmer
Resistance	100kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
