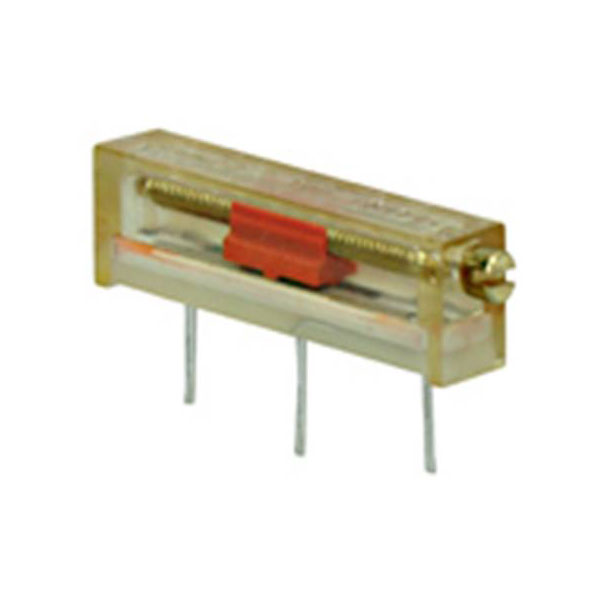

Bourns 3006P-7-103LF Cermet trimmer 0.75 W 10 kΩ 5400° linear 1 pc

Bourns 3006P-7-103LF is a precision-engineered cermet trimmer designed for versatile applications in electronic circuits. This product, also identified as 2996111, features a resistance value of 10 kO with a power rating of 0.75 watts, providing reliable performance in signal conditioning circuits. The trimmer offers a full-scale adjustment of 5400 degrees, allowing for precise linear tuning, which is essential in calibration, set point adjustment, and potentiometer replacement applications. It is well-suited for use in telecommunications, medical instrumentation, and test equipment where fine-tuning and stability are paramount.

Type	Cermet Trimmer
Resistance	10kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
