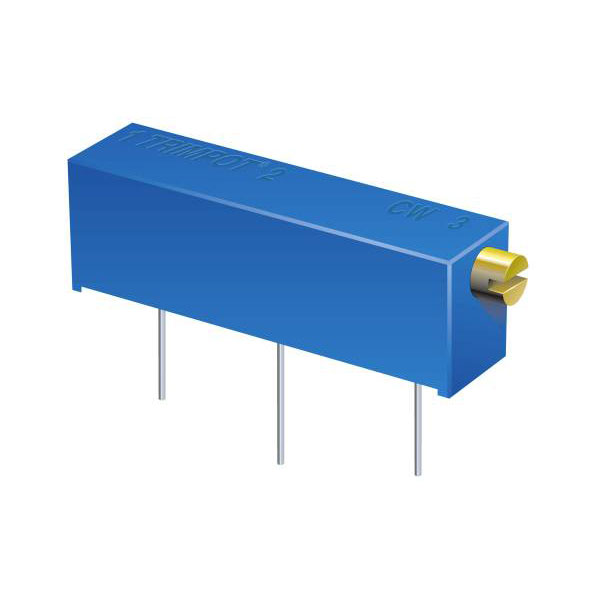

Bourns 3006P-1-254LF Cermet trimmer linear 0.75 W 250 kΩ 5400 ° 1 pc

Bourns 3006P-1-254LF, also referred to as 2996104, is a linear cermet trimmer with a resistance of 250 kO, designed for precise adjustments in electronic circuits. It boasts a power rating of 0.75 watts and a rotation angle of 5400 degrees, facilitating accurate and consistent tuning over its lifespan. This trimmer is ideal for applications requiring fine resistance adjustments such as calibration circuits, sensor signal conditioning, and other precision analogue applications. Manufactured to high standards, it provides engineers with a reliable component suitable for use in various industrial and consumer electronics.

Type	Cermet Trimmer
Resistance	250kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
