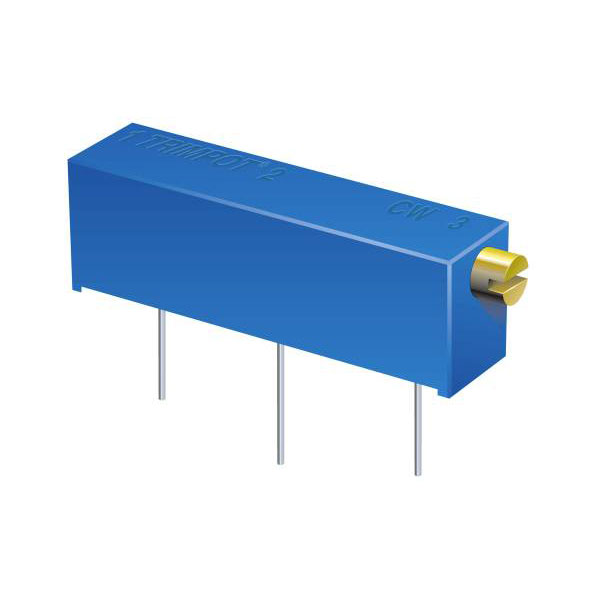

Bourns 3006P-1-253LF Cermet trimmer linear 0.75W 25kΩ 5400° 1 pc trimmer

Bourns 3006P-1-253LF is a robust cermet trimmer resistor capable of handling up to 0.75 watts, with a nominal resistance of 25 kilohms and a full adjustment range of 5400 degrees. This product, also identified as alternate description 2996103, features a reliable design for precision tuning in various electronic circuits. The trimmer incorporates a linear adjustment mechanism, making it ideal for applications requiring fine resistance adjustments such as calibration of instrumentation, signal processing circuits, and feedback control systems. Its durable construction ensures long-term stability and reliability in demanding environments, making it a trusted component in both prototyping and production across diverse fields.

Type	Cermet Trimmer
Resistance	25kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100
Tolerance ±	10%
Width	4.83mm
