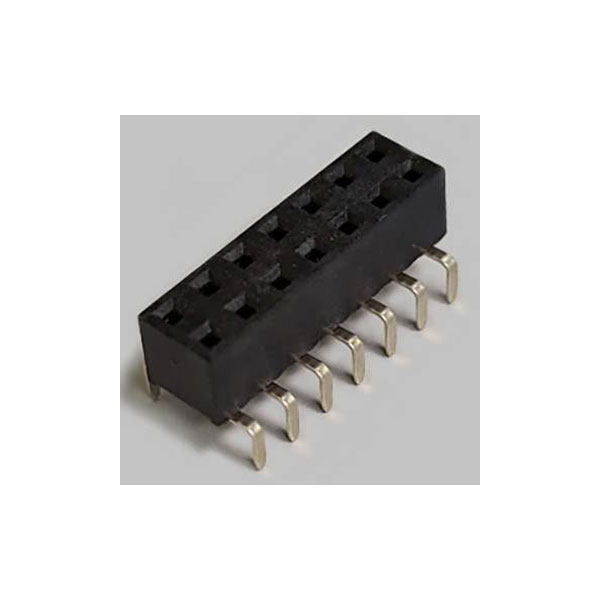

BKL 10122231 SIL socket 2 rows 7 Pins/row standard 1pc

The BKL Electronic SIL socket (standard) 10122231 features a 2-row configuration with 7 pins per row, ideal for streamlined connectivity. Manufactured by BKL Electronic, it is designed for secure and reliable electrical connections. Commonly utilised in electronic and prototyping projects, this component is well-suited for integrating multiple circuits.

Pitch	2.54mm
No. of Rows	1
No. of Ways	14
Case Material	Nylon (NL)
Connection	Print
Connector orientation	Perpendicular (to the PCB)
Connector Type	Power strip, straight
Contact Finish	Gold plated
CS	2.54mm
Factory colour	Black
Height	5.00mm
Maximum Temperature	+105°C
Min. temperature	-40°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	600V
Packaging Type	Tube
Pin length (PCB)	3.00mm
Pin shape	Rectangular
Pins per row	7
Separable	No
Socket depth	5.00mm
Type	SIL socket (standard)
