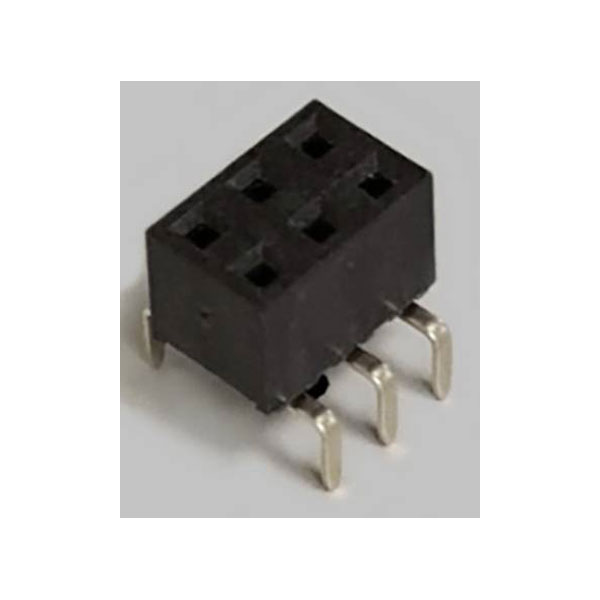

BKL 10122229 SIL socket 2 rows 3 Pins/row 1pc standard

BKL Electronic manufactures the SIL socket (standard) 10122229, featuring two rows with three pins per row. This component is typically used for connecting printed circuit boards in electronic applications. Its precise pin configuration ensures reliable and efficient connectivity.

Pitch	2.54mm
No. of Rows	1
No. of Ways	6
Case Material	Nylon (NL)
Connection	Print
Connector orientation	Perpendicular (to the PCB)
Connector Type	Power strip, straight
Contact Finish	Gold plated
CS	2.54mm
Factory colour	Black
Height	5.00mm
Maximum Temperature	+105°C
Min. temperature	-40°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	600V
Packaging Type	Tube
Pin length (PCB)	3.00mm
Pin shape	Rectangular
Pins per row	3
Separable	No
Socket depth	5.00mm
Type	SIL socket (standard)
