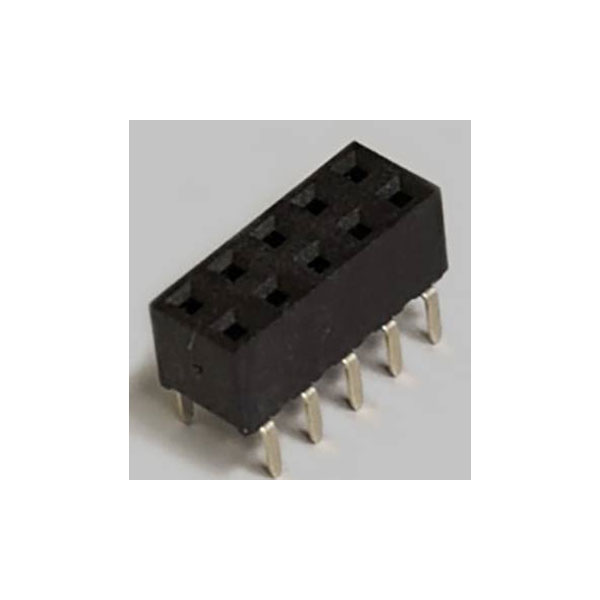

BKL 10122224 SIL socket 2 rows 5 Pins each tube packaging

The BKL Electronic SIL socket is a standard component with two rows and five pins per row, ideal for secure electronic connections. Manufactured by BKL Electronic, its compact design makes it suitable for prototyping and electronic projects. This versatile connector is often used in circuit boards and various electronic applications.

Pitch	2.54mm
No. of Rows	1
No. of Ways	10
Case Material	Nylon (NL)
Connection	Print
Connector orientation	Perpendicular (to the PCB)
Connector Type	Power strip, straight
Contact Finish	Gold plated
CS	2.54mm
Factory colour	Black
Height	5.00mm
Maximum Temperature	+105°C
Min. temperature	-40°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	600V
Packaging Type	Tube
Pin length (PCB)	3.00mm
Pin shape	Rectangular
Pins per row	5
Separable	No
Socket depth	5.00mm
Type	SIL socket (standard)
