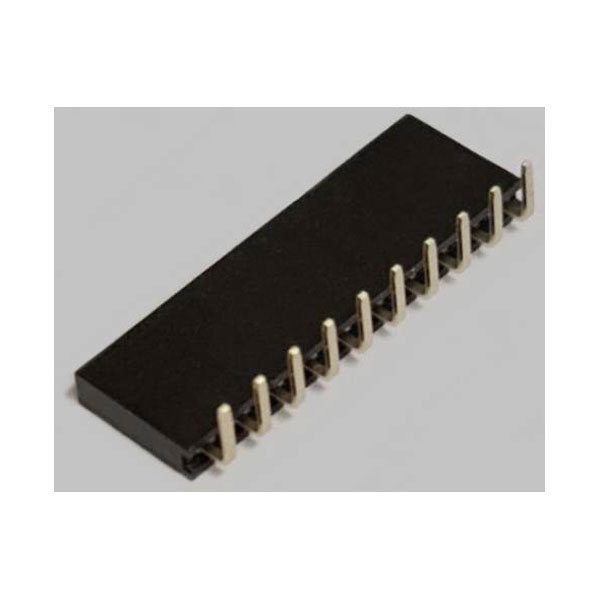

BKL 10122216 SIL Socket 1 Row 10 Pins 1pc Tray

The BKL Electronic SIL socket (standard) features a single row with 10 pins, providing reliable connectivity for electronic components. This component, model 10122216, is ideal for prototyping and connecting various integrated circuits. It is well-suited for use in electronic development and circuit testing scenarios.

Pitch	2.54mm
No. of Rows	1
No. of Ways	10
Case Material	PBT
Connection	Print
Connector orientation	Parallel (to the PCB)
Connector Type	Power strip, right angle
Contact Finish	Gold plated
CS	2.54mm
Factory colour	Black
Height	8.50mm
Maximum Temperature	+105°C
Min. temperature	-40°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	600V
Packaging Type	Tray
Pin length (PCB)	3.26mm
Pin shape	Rectangular
Pins per row	10
Separable	No
Socket depth	2.50mm
Type	SIL socket (standard)
