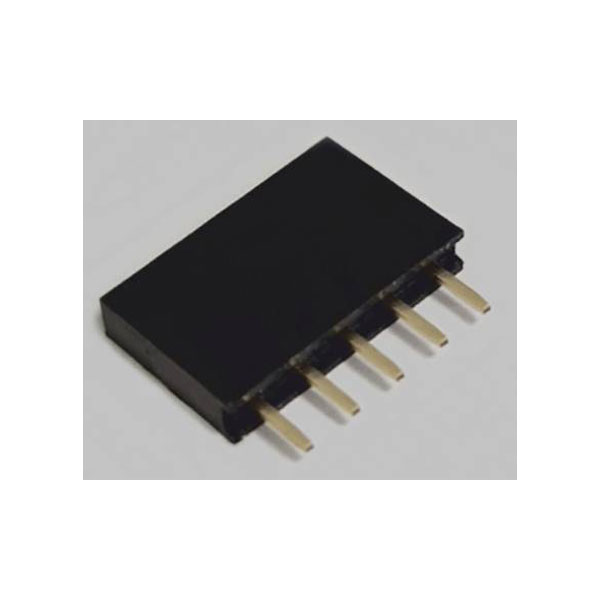

BKL 10122203 SIL socket 1 row 5 Pins standard 1pc tray

BKL
Order Code:

01-5836

Brand: BKL MPN: 10122203 EAN-13: 2050006642542

Discontinued


The BKL Electronic SIL socket, model 10122203, is a standard single-row connector with five pins per row. This component is ideal for connecting PCBs and used in various electronic applications. Its compact and straightforward design makes it suitable for efficient and reliable circuit assembly.
No. of Rows 1
No. of Ways 5
Contact Finish Gold plated
Case Material PBT
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
CS 2.54mm
Factory colour Black
Height 8.50mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 600V
Packaging Type Tray
Pin length (PCB) 3.20mm
Pin shape Rectangular
Pins per row 5
Separable No
Socket depth 2.50mm
Type SIL socket (standard)
