BKL 10122202 SIL socket standard 1 row 4 Pins 1pc tray

BKL
Order Code:

01-5835

Brand: BKL MPN: 10122202 EAN-13: 2050006642580
Qty Unit Price (Ex VAT)
20+ £0.314
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

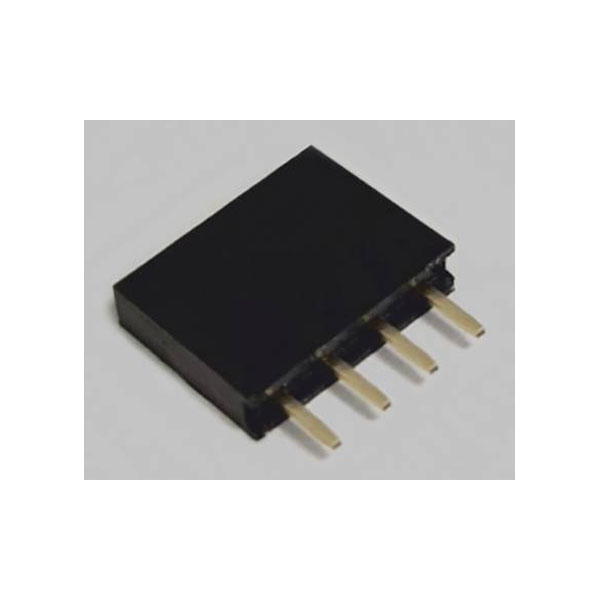

The BKL Electronic 10122202 SIL socket (standard) is designed with a single row and contains 4 pins per row, providing a reliable connection for electronic components. Manufactured by BKL Electronic, it is ideal for use in prototyping and circuit testing applications. This SIL socket is packaged conveniently, facilitating easy organisation and storage.
Case Material PBT
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Brass
Contact surface Gold plated
CS 2.54mm
Factory colour Black
Height 8.50mm
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 600V
Number of Rows 1
Packaging Type Tray
Pin length (PCB) 3.20mm
Pin shape Rectangular
Pins per row 4
Separable No
Socket depth 2.50mm
Total number of pins 4
Type SIL socket (standard)
