BKL 10120204 Male Header 2.54mm Pitch Straight 1 x 20-pole 6.8mm Pins

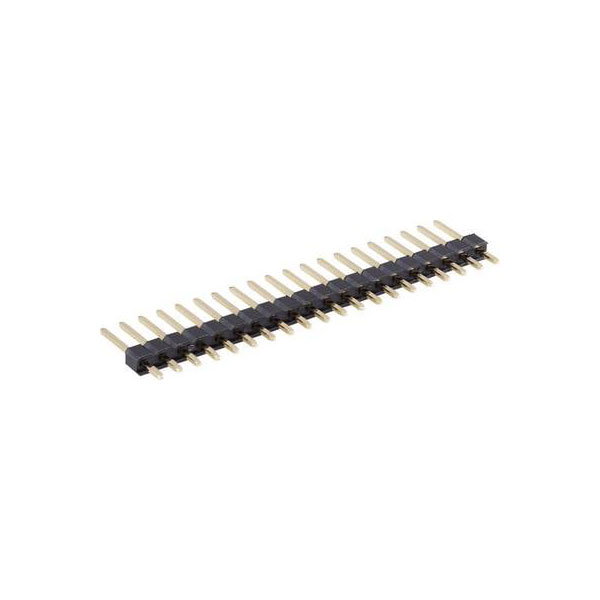

Image Representative of Range

BKL 10120204 Male Header 2.54mm Pitch Straight 1 x 20-pole 6.8mm Pins

BKL
Order Code:

54-5068

Brand: BKL MPN: 10120204 EAN-13: 4011376702104
Qty Unit Price (Ex VAT)
20+ £0.350
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
192 available to back orderBack-order availability date - 14/01/2026

BKL Electronics 10120204 For vertical mounting as a cable connector, PCB connector strip or with option jumpers. For printed circuit boards, flat cable connectors, etc. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold-plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 12.6mm
  • Dimensions, length: 50.8mm
  • Dimensions, width: 2.54mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120204
  • Nominal current: 3A
Type Header
Number of Positions 20
Pitch 2.54mm
Number of Rows 1
Mouning Orientation Straight
Connection Through hole
