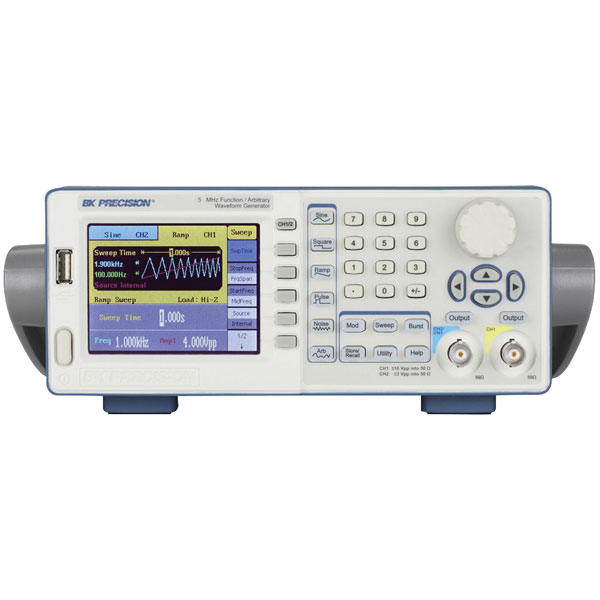

The BK Precision model 4052 5MHz dual-channel function / arbitrary waveform generator is capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms.
With easy-to-read colour displays and an intuitive user interface with numeric keypad, the 4052 offers plenty of features including linear / logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 125 MSa/s arbitrary waveform generator.
The main output voltage can be varied from 0 to 10Vpp into 50Ω (up to 20Vpp into open circuit) and the secondary output can be varied from 0 to 3Vpp into 50Ω (up to 6Vpp into open circuit).
- 1µHz to 5MHz sine and square frequency range
- 14-bit, 125MSa/s, 16k point arbitrary waveform generator
- Large 3.5in. LCD colour display with waveform preview
- Linear and logarithmic sweep
- AM / DSB-AM / ASK / FM / FSK / PM / PWM modulation functions
- Variable DC offset
- Adjustable duty cycle
- Two independent channels with individual output On/Off buttons
- Internal / external triggering
- Gate and burst mode
- 48 built-in predefined arbitrary waveforms
- Store / recall up to 10 instrument settings and 10 arbitrary waveforms
- Built-in counter
- USB device port (USBTMC-compliant) with front panel USB host port
- GPIB connectivity with optional USB-to-GPIB adaptor, model AK40G (not included)
- SCPI-compliant command set
- Short-circuit protection on outputs
- LabVIEW drivers available
- BK Precision type 4052
