Binder 99 9206 070 03 Female Cable Mnt 3 Pin Green Code with Solder Termination

Image Representative of Range

Binder 99 9206 070 03 Female Cable Mnt 3 Pin Green Code with Solder Termination

Binder
Order Code:

55-0666

Brand: Binder MPN: 99 9206 070 03 EAN-13: 2050001564894
Qty Unit Price (Ex VAT)
1+ £5.56
10+ £5.54
50+ £5.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
29 available to back orderBack-order availability date - 10/01/2026

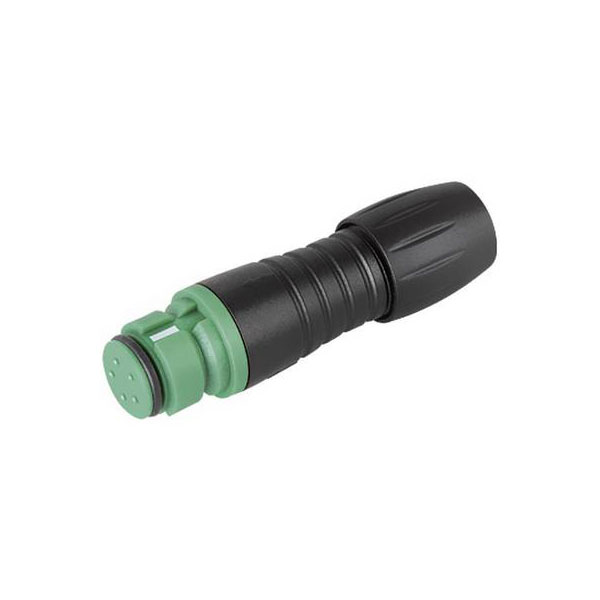

A 3-pin green female subminiature cable mount snap-in connector with solder termination.
  • Number of poles: 3
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Cable outlet: 3 - 5 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 2
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): 3 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: PA (UL 94 V-0)
Number of Contacts 3
Current Rating 3A
Gender Female
IP Rating IP67
Contact Material CuSn
Contact Plating Gold
Mounting Type Cable
Nominal Voltage 125V
Termination Solder
