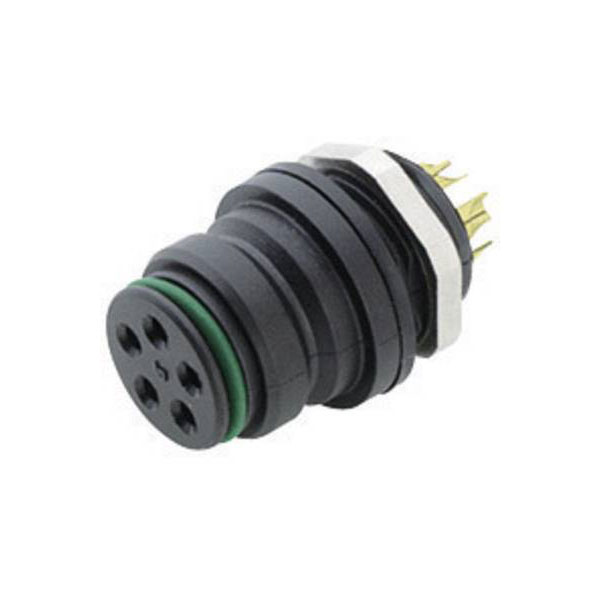

Binder 99-9116-00-05 Female Panel Mount 5 Pin with Solder Terminal

A female 5-pin IP67 miniature panel mount snap-in connector with a black body and solder termination.

• Number of poles: 5
• Connector locking system: Snap-in locking
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -25 °C
• Rated voltage: 125 V
• Rated impulse voltage: 1500 V
• Pollution degree: 2
• Overvoltage category: II
• Material group: II
• Rated current (40°C): 5 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Au (gold)
• Material of contact body: PA (UL 94 V-0)
• Material of housing: PA (UL 94 V-0)

For the Front panel assembly, the Adapter needed is 720-08-2433-000-001 or 720-08-2434-000-001.

Type	Panel Mount Female
Number of Contacts	5
Connector Size	18.5 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Gold
Current Rating	5A
IP Rating	IP67
Maximum Temperature	+125°C
Min. temperature	-55°C
Mounting Type	Panel
Nominal Voltage	125V
Number of pins	5
Termination	Solder
