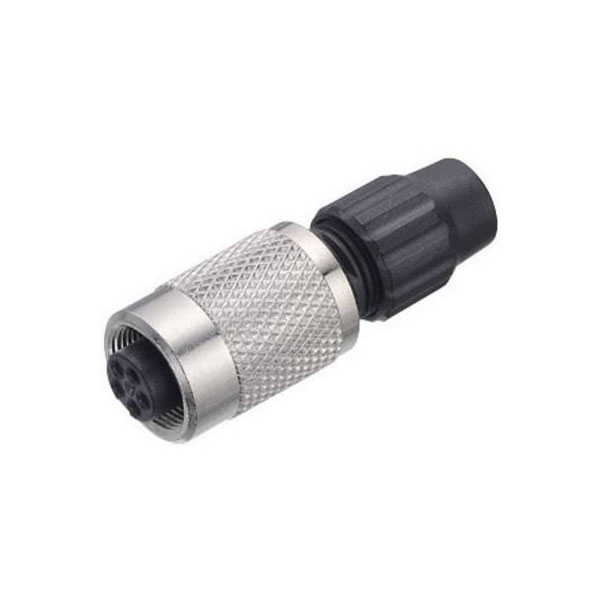

Binder 99-0476-100-07 Female 3-4mm 7 Pin Cable Mount Screw with Solder Terminal

A 7-pin female black and silver subminiature cable mount M9 screw connector with a 3 to 4mm outlet and solder terminals.

• Number of poles: 7
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,14 mm²
• Wire gauge (AWG): 26
• Cable outlet: 3 - 4 mm
• Degree of protection: IP 40
• Mechanical operation: >500 mating cycles
• Upper temperature: +85 °C
• Lower temperature: -40 °C
• Rated voltage: 125 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: II
• Material group: III
• Rated current (40°C): 1 A
• Volume resistivity: ≤ 3 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Au (gold)
• Material of contact body: PA (UL 94 V-0)
• Material of housing: PA (UL 94 VH-B)

Type	Cable Plug
Number of Contacts	7
Connector Size	18.5 mm dia
Gender	Female
Cable Diameter	3 to 4mm
Contact Material	CuSn
Contact Plating	Gold
Current Rating	1A
IP Rating	IP40
Maximum Temperature	+85°C
Min. temperature	-40°C
Mounting Type	Cable
Nominal Voltage	125V
Number of pins	7
Termination	Solder
