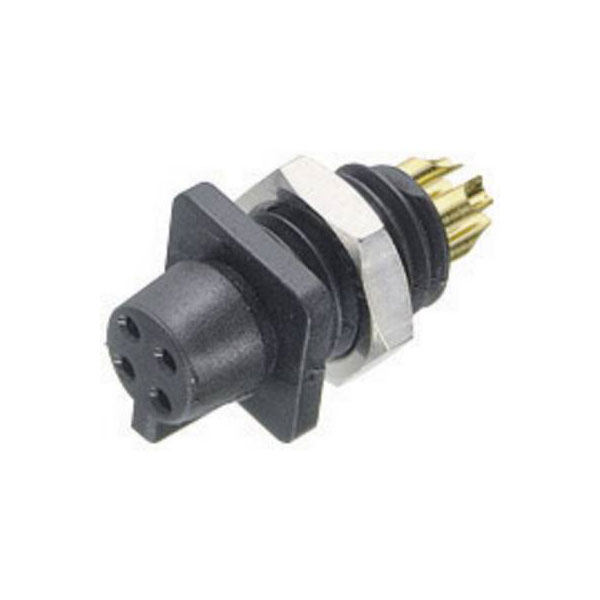

Image Representative of Range

Binder 09-9792-30-05 Female 5 Pin Panel Mnt with Solder Terminal

MPN: 09-9792-30-05
Brand: Binder
EAN-13: 2050000421907
Order Code: 55-1118
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£6.51
10+	£6.09

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

55 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

A female 5-pin black subminiature panel mount snap-in connector with solder termination.

Number of poles: 5
Connector locking system: Snap-in locking
Termination: solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Degree of protection: IP 40
Mechanical operation: >100 mating cycles
Upper temperature: +70 °C
Lower temperature: -25 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 1
Overvoltage category: II
Material group: III
Rated current (40°C): 3 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: PA

Type	Panel Mount Female
Number of Contacts	5
Connector Size	20 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Gold
Current Rating	3A
IP Rating	IP40
Mounting Type	Panel
Nominal Voltage	60V
Termination	Solder
